ProCal SNAP for Jeep Wrangler JL & Jeep Gladiator
ProCal SNAP for Wrangler JL & Gladiator
ProCal SNAP for JL Wrangler and Gladiator is a cost effective calibration module that accurately corrects your speedometer after installing larger tires (up to 42″ tall) and/or changing the axle/transfer case gear ratio, saving you from the headaches of going to the dealership or depending on a lesser quality module. The ProCal SNAP also features TPMS functionality and is compatible with all 2018+ JL Wrangler/Gladiator models, including 4xe and 392.

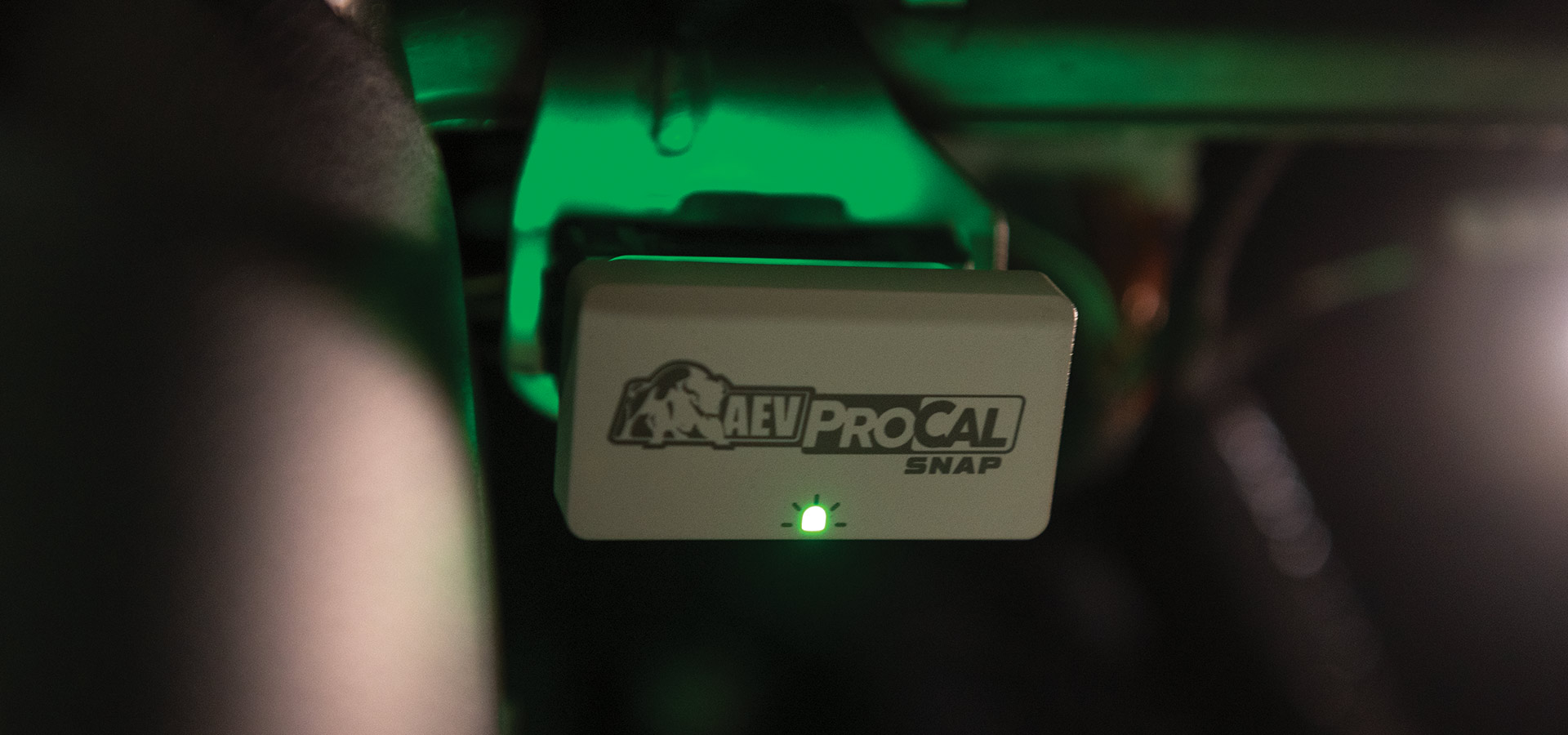

After installing AEV’s Programming Harness (included), ProCal SNAP simply plugs into your vehicle’s OBDII diagnostic port and interfaces with the user through the audio system equalizer. After inputting the necessary numerical values for the tire size or gear ratio through the audio equalizer (example: 35.5” tall tire = bass 3, mid 5 and treble 5) the settings are saved by pressing and holding a combination of buttons on the steering wheel. It’s that easy…in fact, some might say it’s a SNAP!
ProCal SNAP is proudly manufactured in the USA.
Please note: ProCal SNAP is included with AEV JL/Gladiator suspension systems!
- Easy installation
- Fits 2018+ JL Wrangler and Gladiator truck
- Accurately calibrates your speedometer in minutes
- Ideal for vehicles with larger than stock tires (up to 42″ tall) and/or different axle/transfer case gear ratio
- NOW featuring TPMS capability
- Proudly made in the USA
- 2019+ Gladiator, 2018+ JL Wrangler
- Difficulty Level:
AEV ProCal SNAP for JL & JT User Guide
AEV ProCal Harness for JL Installation Guide
AEV ProCal SNAP for JL & JT Installation Guide
- What vehicles does the ProCal SNAP work with?
The ProCal SNAP is designed specifically for the 2018+ Jeep Wrangler JL (including 392) and 2019+ Jeep Gladiator truck.
- I see that TPMS functionality is available on "AC-level" ProCal SNAP models. What does that mean?
This note really only applies to older inventory sitting on a shelf or for technical support purposes. ALL ProCal SNAP modules currently being shipped by AEV are all the latest revision level. "AC" refers to the last two characters in the part number found on the box. If we need to make an update, we change the level in alphabetical order. For example: AC, AD, AE, AF and so on...
- What is the wiring harness for?
The JL Wrangler and Gladiator both have a security gateway module installed from the factory. In order to bypass the security gateway module, there are two options: install a bypass module or install the AEV Programming harness. It’s much easier to install the harness which gives enthusiasts a direct connection to their vehicles communication system for the ProCal or any device utilizing the OBDII Connector with the AEV adapter. This system retains the factory security gateway module to protect you from a remote attack through the radio or cellular connection.
- There are other similar electronic calibration modules on the market, what makes the ProCal SNAP better?
Experience- We have been designing and manufacturing calibration modules for over a decade, beginning with the JK Wrangler. Also, we have tested some of the competitive products out in the market and have seen everything from unexplained battery draw to features that are potentially dangerous to both the user and the vehicle.
For customers looking for additional features, we are currently working on the development of a next generation ProCal module that will offer even more options than any other module we have previously released.
- What functions will the ProCal SNAP perform?
The ProCal SNAP provides quick and easy speedometer calibration for customers who install taller than stock tires, change their axle/transfer case gear ratio and TPMS adjustment (an AC-level and higher SNAP modules). "AC" refers to the last two letters found in the part number and increase in alphabetical order.
- Will the ESP in my vehicle system be affected?
Yes, for the better. The ESP system uses vehicle speed along with individual sensors that measure acceleration both front-to-rear and side-to-side. ESP functions by calculating how much steering angle the user inputs and how fast the vehicle is going, and then calculates how much side-to-side acceleration should occur. If the side-to-side acceleration is less than what the ESP predicts, that means the vehicle is sliding and it will try to correct the situation by applying specific brakes at each wheel and/or reducing throttle.
If the tire size and gear ratio values are incorrect, the calculations the ESP system processes will also be incorrect. This can cause the ESP system to trigger at the wrong time, which at best can be annoying and if it happens at the wrong time (or doesn’t happen when it should) can be dangerous. Lifted vehicles are more prone to inadvertent ESP activation, because the speedometer is wrong. The ProCal SNAP will allow you to fix this issue so your ESP can function properly.
- Does the AEV ProCal change the software of the vehicle?
No. The ProCal SNAP only adjusts parameters the vehicle uses in calculations. These parameters will not cause any reliability issues and can always be modified or restored to an original value.
- How long does it take to calibrate my vehicle?
After installing the supplied AEV Programming Harness, calibrating your speedometer with the ProCal SNAP only takes a few minutes.
- Can I use the AEV ProCal on more than one vehicle?
No, the ProCal SNAP pairs itself with the first vehicle it is used on. Do not pair the ProCal SNAP on any vehicle you do not intend on calibrating.
- I bought 35" tall tires, do I really have to measure them or is 35" close enough?
Yes, you really have to measure the tire. The size listed on the side of the tire can be off by as much as an inch in either direction. All manufacturers’ values are different, and there can be variation in the manufacturing process. An actual measurement with weight on the vehicle, rounded to the nearest quarter inch, is required in order to get an accurate input.
- Do I need to re-calibrate my vehicle if the battery is disconnected?
No. The data that the AEV ProCal SNAP modifies does not depend on constant power and will remain even if the battery has been removed.
- I took my Jeep to the dealer and had to re-flash my vehicle. What should I do?
If a feature has been changed by the dealer or anyone else, simply re-calibrate the speedometer using your AEV ProCal SNAP by following the original installation procedure.
- Do I need to keep the ProCal SNAP plugged into the vehicle?
No. The AEV ProCal SNAP was not designed to remain plugged in. Once you are finished using your ProCal SNAP, it is recommended to store the module in a dry place, like the glove box.
- What tire size range does the ProCal SNAP work with?
ProCal SNAP has the ability to calibrate your speedometer for any tire measuring 29-42" tall.
- I use the metric system, will the ProCal SNAP work for me?
No problem. Since the ProCal SNAP is primarily marketed in the United States, the instructions show non-metric values. For customers outside of the US, simply convert your metric values to imperial and follow the instructions provided.
- Where is the ProCal SNAP manufactured?
Expecting us to say China, Taiwan or Hong Kong? The ProCal SNAP is proudly manufactured right here in the USA. Try to find an electronics manufacturer that can say that these days!
