Borah Wheel for Jeep Wrangler JL & Jeep Gladiator

Borah DualSport Wheel

$321.00$478.00

Borah DualSport for JL Wrangler & Gladiator

AEV’s popular and versatile Borah DualSport Wheel is now available for the 2018+ JL Wrangler and Gladiator truck! As the name implies, this is not another one-size-fits all aftermarket wheel – it is specifically designed for the JL Wrangler, paying close attention to its unique offset, back spacing and center cap bore requirements. The Borah’s unique offset of +25mm, works perfectly with the JL Wrangler’s variety of fender flare styles and provides the optimal balance of tire clearance, scrub radius and handling.

The AEV Jeep Wrangler JL/Gladiator Borah Beadlock wheel is available in a number of customizable configurations with either a fully-functional Beadlock Ring for running very low tire pressure off-road, a Protection Ring designed for street use as well as additional wheel protection off-road, or no ring for a simple, minimalist look. Both the Beadlock and Protection Rings are interchangeable, giving you the flexibility to run a Protection Ring on the street or upgrade to a functional Beadlock Ring for off-road use.

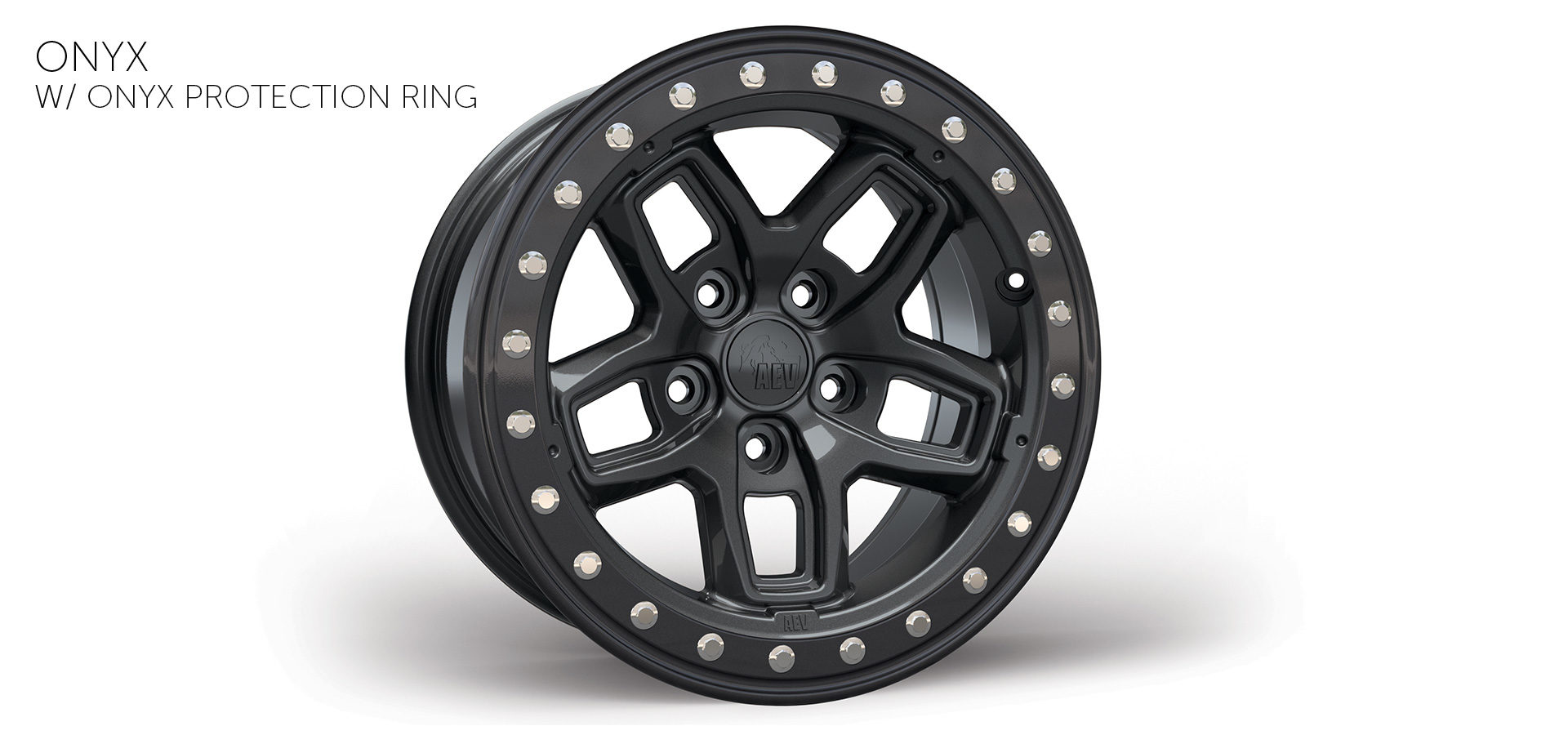

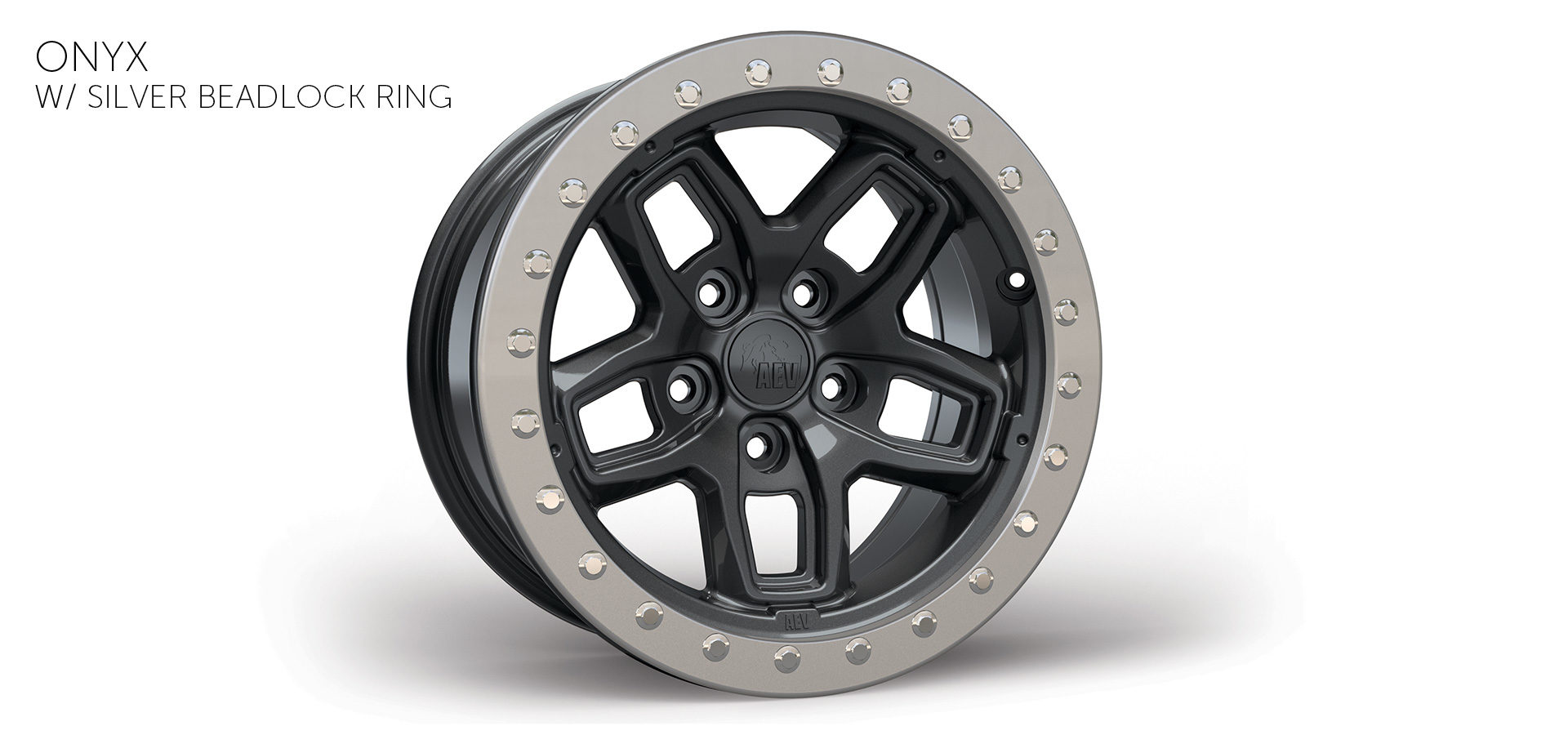

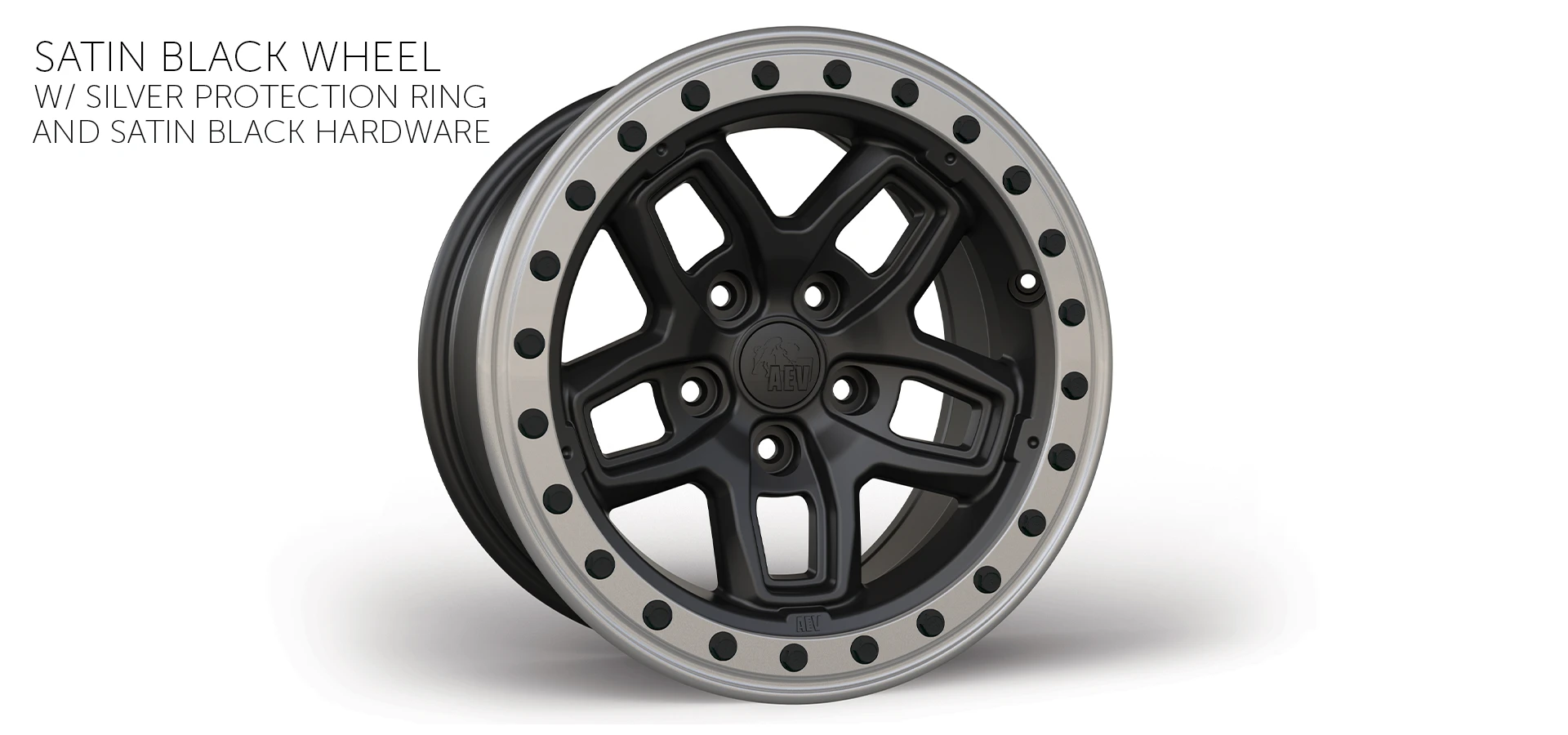

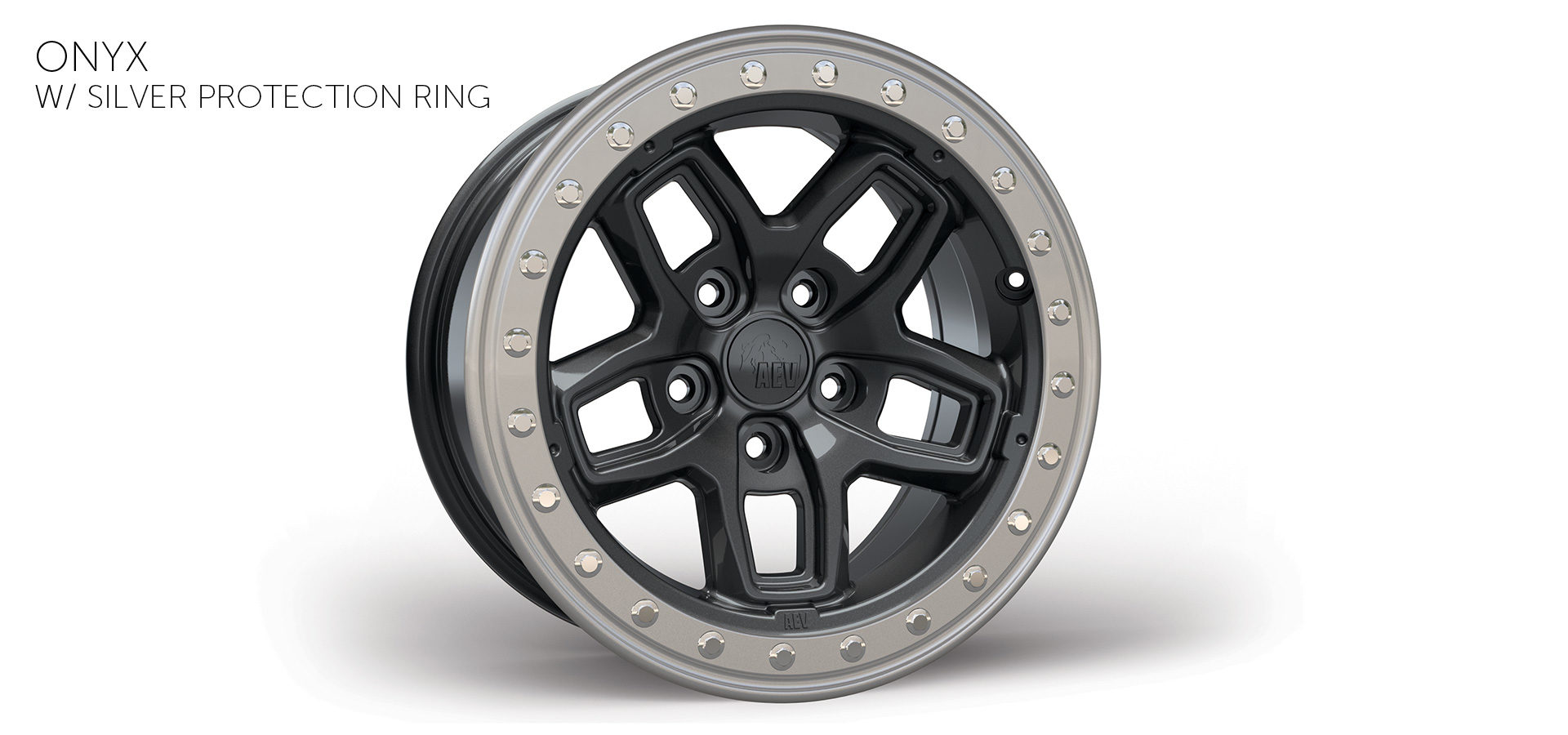

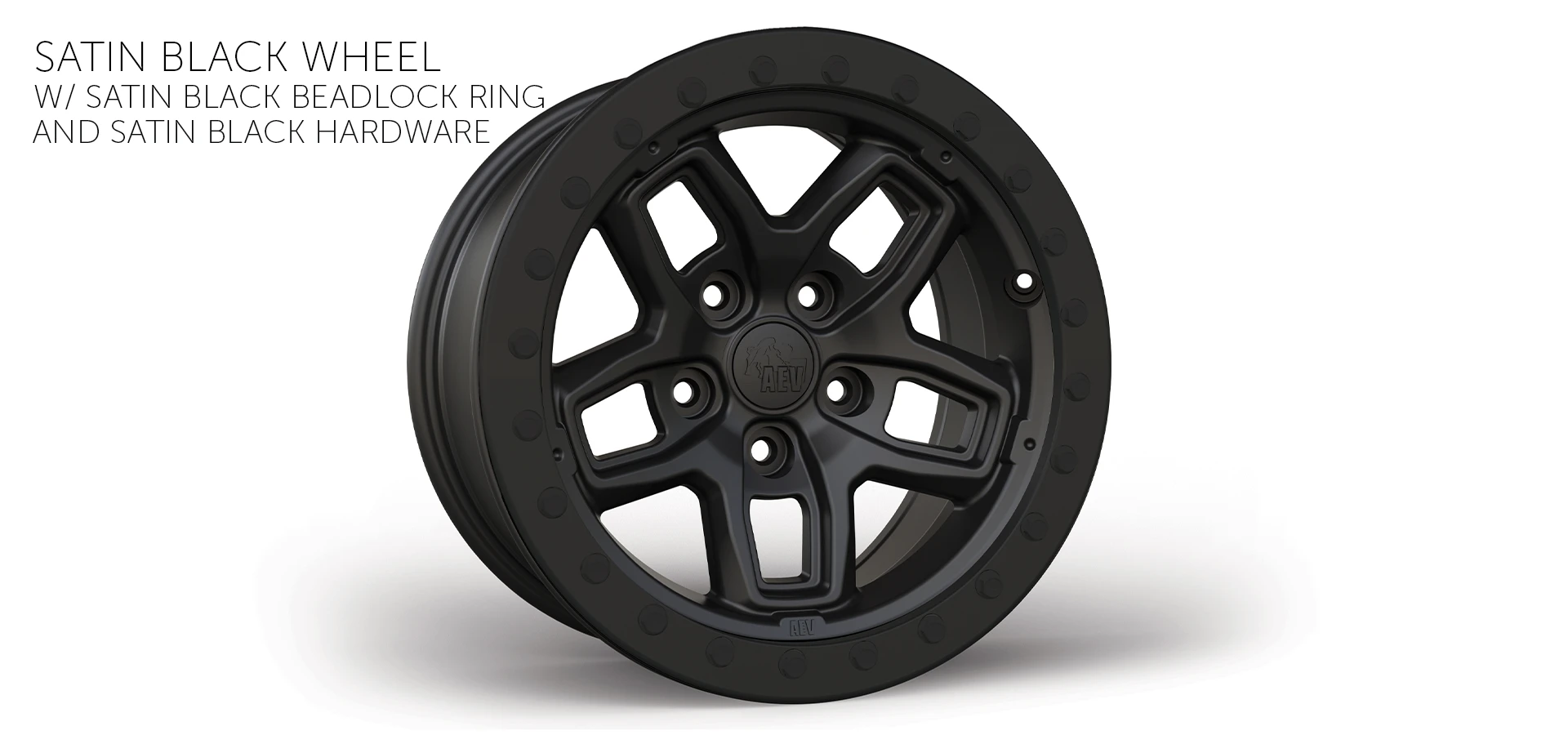

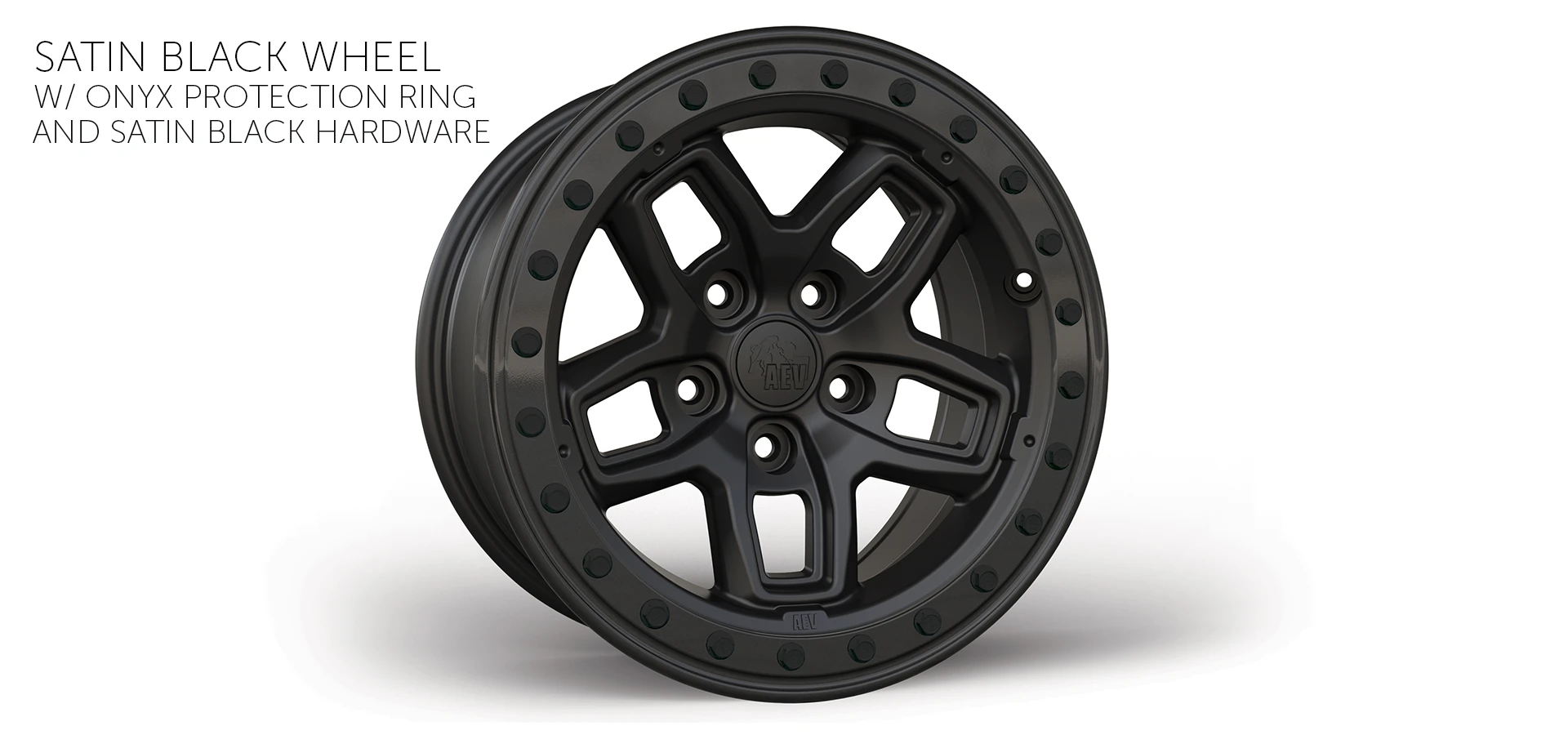

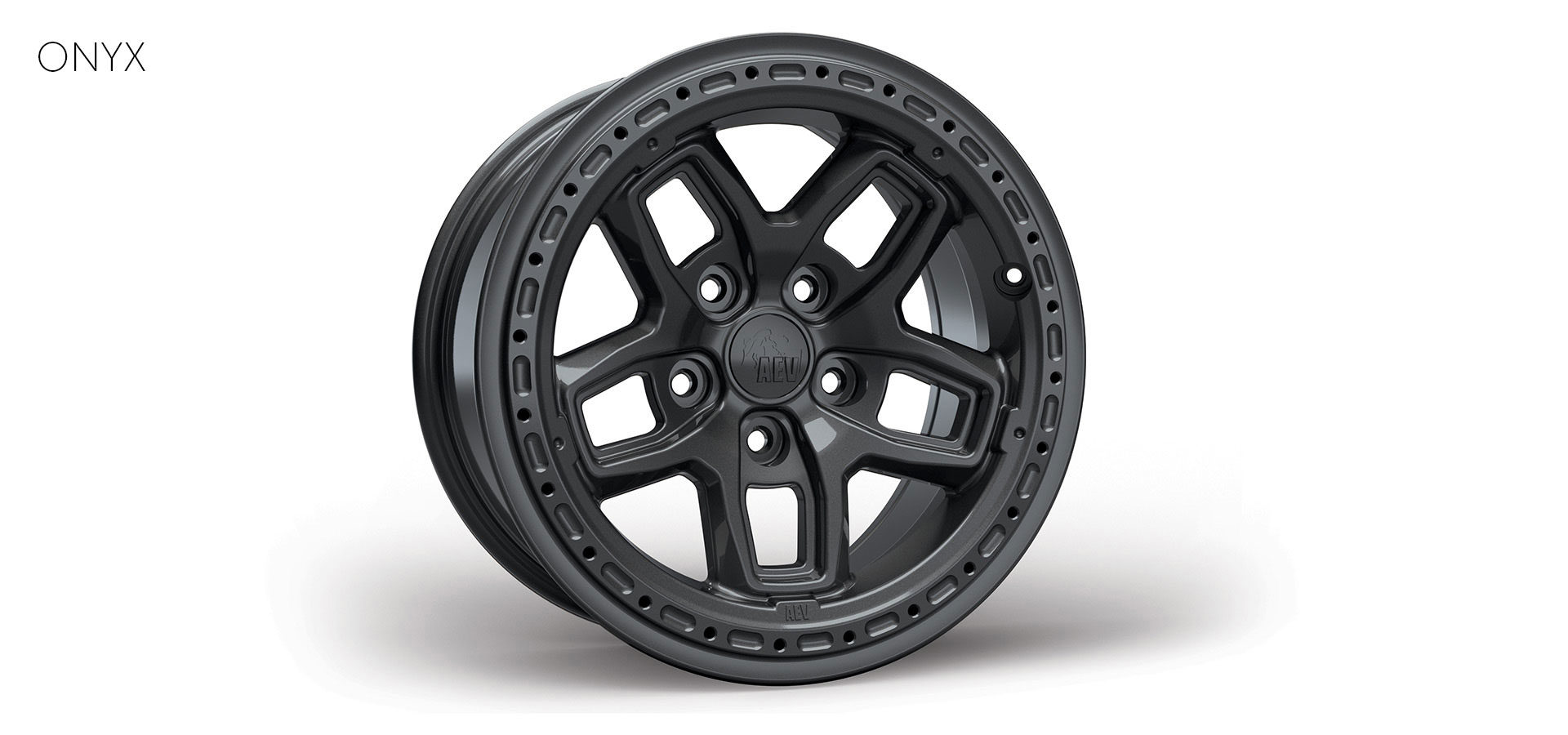

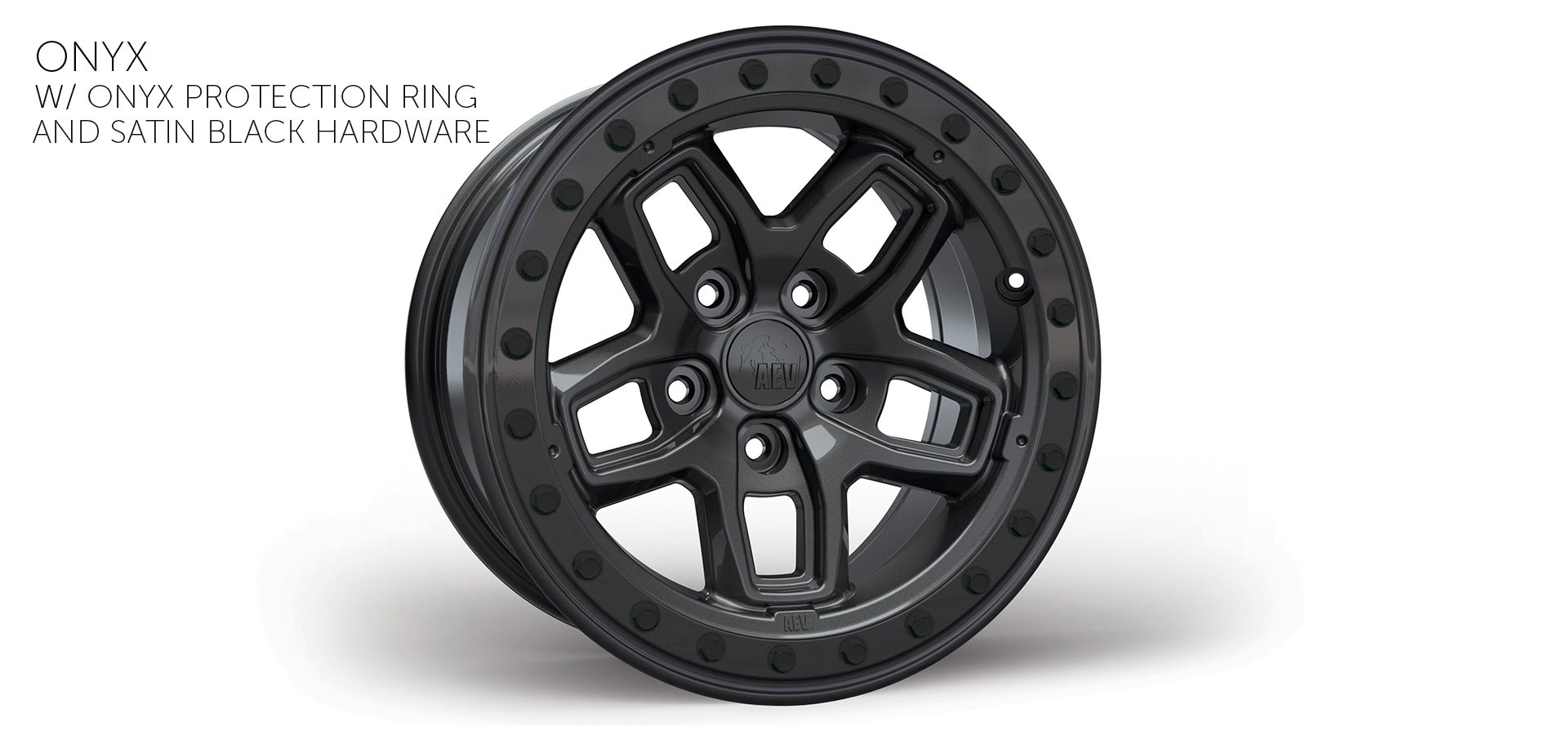

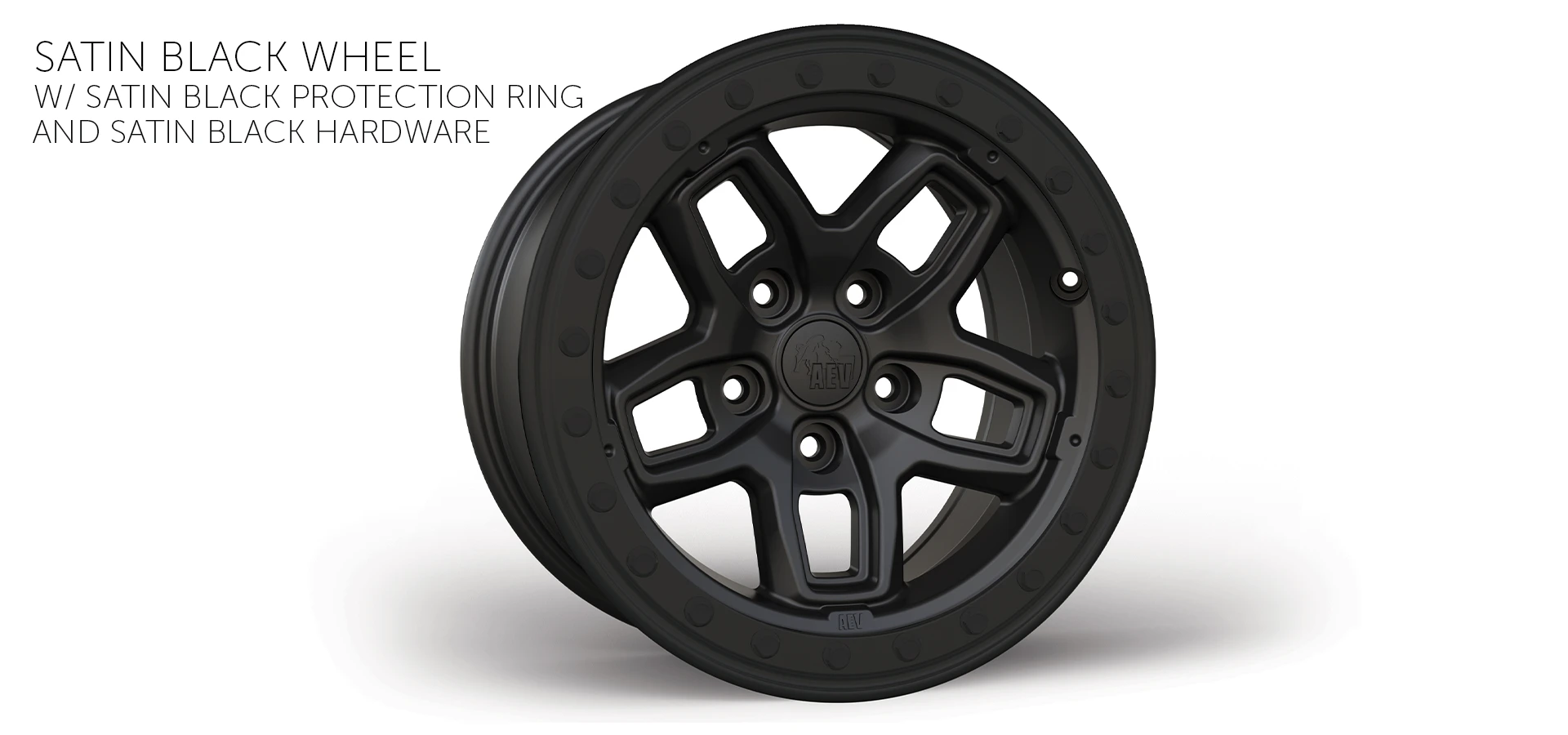

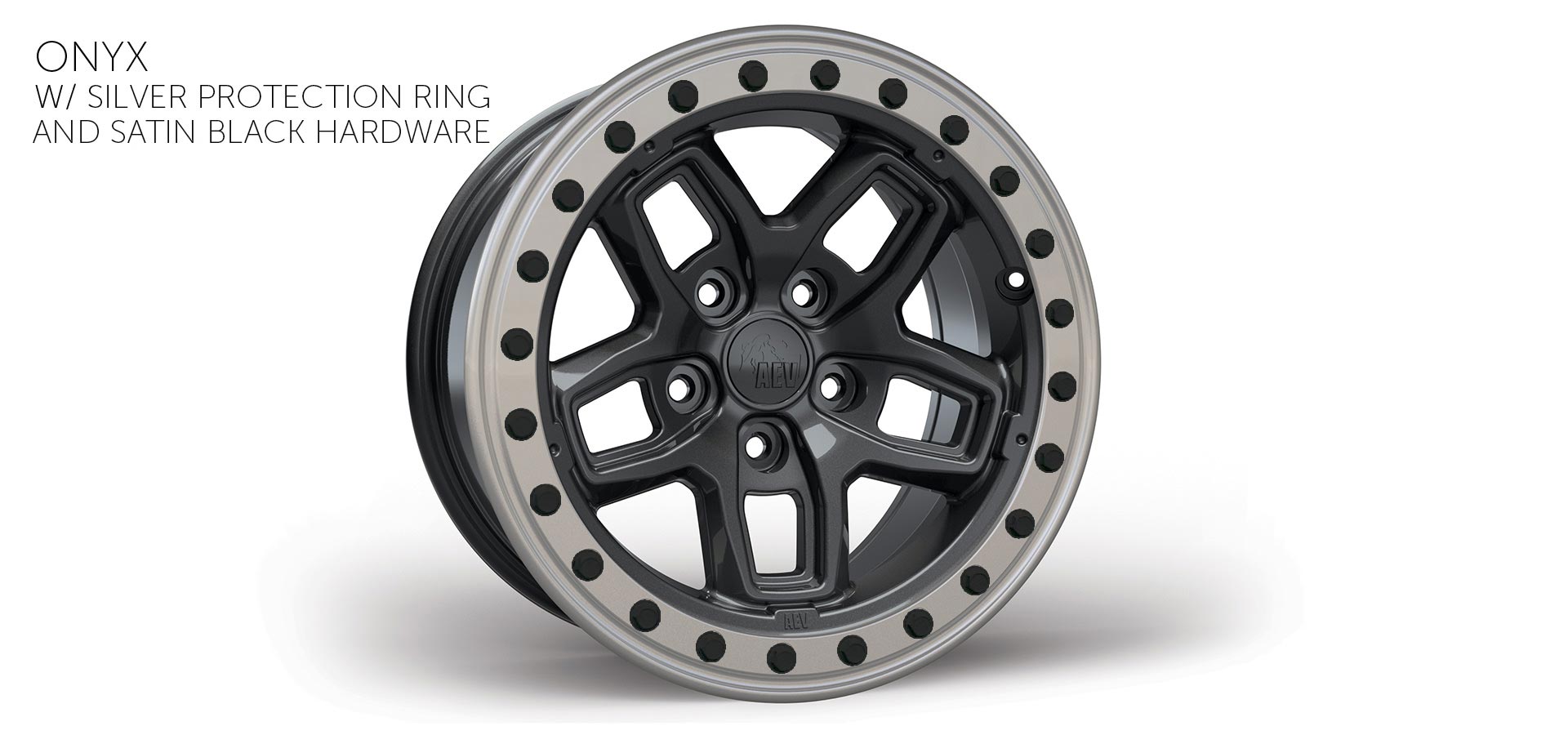

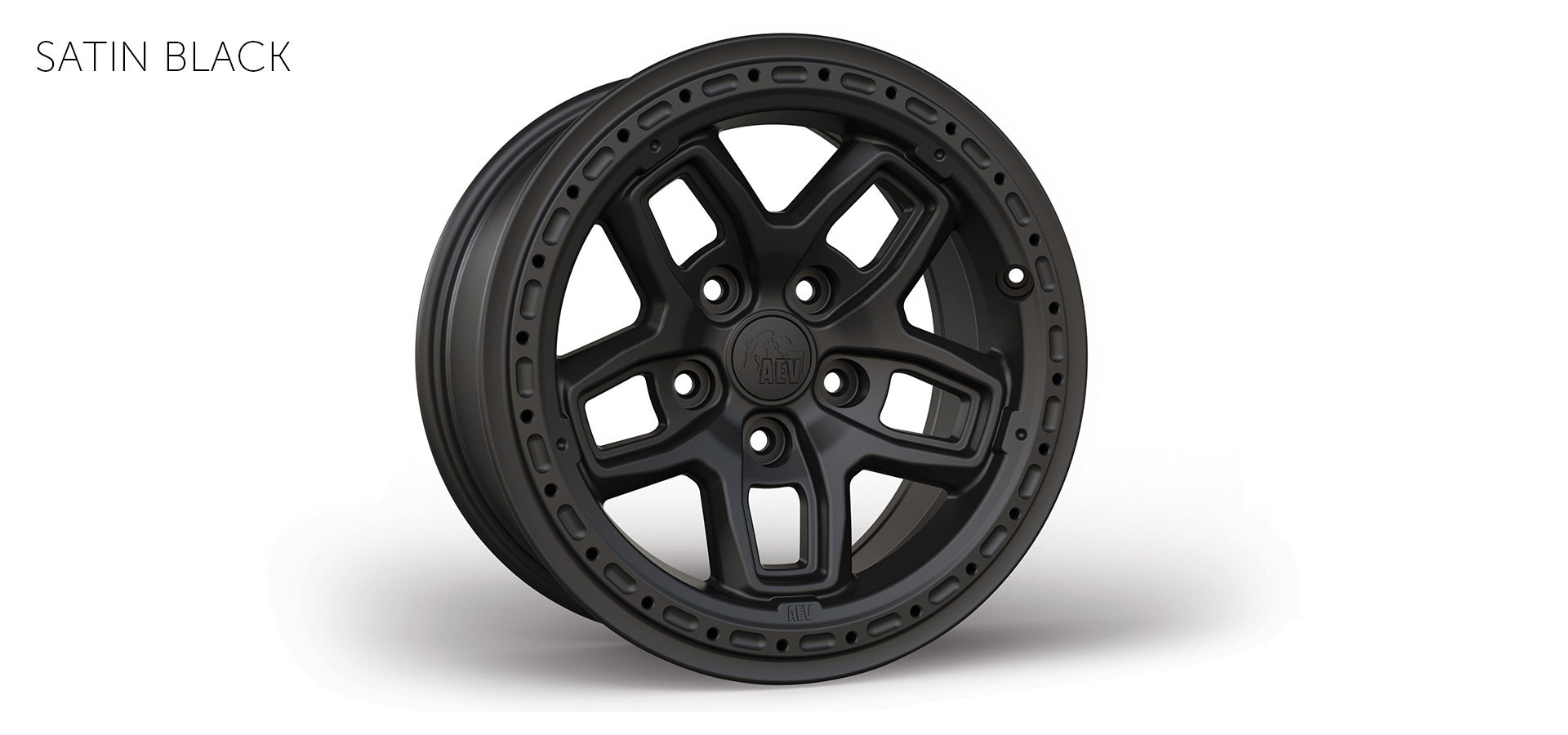

The AEV JL Borah Beadlock is available in either an Onyx, Satin Black or Galaxy Black painted finish. The optional Beadlock Ring and Protection ring are both available in a silver or onyx finish that can easily be painted for a truly customized appearance.

Off Road Use Only: The AEV Jeep Wrangler JL/Gladiator Borah Beadlock wheel with the Beadlock Ring installed is DOT compliant but that does not necessarily mean that they are 50-state legal for street use. Check state and local restrictions on beadlock installation and use BEFORE ordering. Beadlock wheels must be properly installed and require routine maintenance. As a general policy, AEV recommends that beadlock wheels are used for off-road purposes only.

AEV Beadlock Tire Compatibility: Due to the inherent variances in bead thickness between different tire models/manufacturers, the Borah/Crestone wheel is not compatible with some tires. We have confirmed that the tires listed below are compatible with this wheel. Other tire brands and models may also work but AEV only recommends using the tires listed on this chart. Tires that are not listed on this chart may have a bead that is too thick for this wheel which can lead to wheel failure, vehicle damage and personal injury. AEV will be updating this list with additional tire manufacturers and models as we test them. Please contact the AEV Sales Team at (248) 926-0256 if you have any questions or concerns about tire compatibility before ordering. This advisory affects the Borah/Crestone wheel in the functional beadlock configuration only.

Brand Model Size
BFGoodrich All-Terrain KO2 LT285/70R17
BFGoodrich All-Terrain KO2 LT315/70R17
BFGoodrich All-Terrain KO2 34×10.50R17
BFGoodrich All-Terrain KO2 35×12.50R17
BFGoodrich All-Terrain KO2 37×12.50R17
BFGoodrich Mud-Terrain KM2 LT285/70R17
BFGoodrich Mud-Terrain KM2 35×12.50R17
BFGoodrich Mud-Terrain KM2 37×12.50R17
BFGoodrich Mud-Terrain KM3 LT285/70R17
BFGoodrich Mud-Terrain KM3 LT295/70R17
BFGoodrich Mud-Terrain KM3 35×12.50R17
BFGoodrich Mud-Terrain KM3 37×12.50R17
General  Grabber X3 37×12.50R17
Nitto Ridge Grappler 37×12.50R17
Toyo  Open Country M/T 35×12.50R17
Toyo Open Country M/T 37×12.50R17
Yokohama Geolander MT G003 LT285/70R17

Key Features:

  • Hub centric design
  • Accepts OE lug nuts
  • Recessed valve stem for added protection
  • TPMS Compatible
  • Both versions have been tested to stringent DOT/SAE J2530 standards
  • Molded AEV Center Cap included
  • Lifetime structural warranty

Product Video

Tech Specs:

Manufacturing Process:
Cast
Material:
Aluminum
Coatings:
Paint, Primer
Size:
17" x 8.5"
Weight:
33 lbs
Bolt Pattern:
5x5
Hub Bore Diameter:
71.5mm
Offset:
+25mm
Approximate Backspacing:
5.72"
Weight Rating:
2,400lbs
California Prop 65 Warning

Installation:

Difficulty Level:
Moderate
Estimated Install Time:
3-4 Hours/set - (for Beadlock Ring only)

Installation Guides:

AEV DualSport Wheel Installation Guide

" The way AEV chose to detail the wheels makes them look great but it is still very easy to spray them off and quickly wipe them completely clean. "
-"William Connor, 4 Wheels and a Motor"

Product FAQs

What are the advantages of AEV's DualSport Wheels?

Beadlock wheels offer a distinct advantage off-road when running extremely low tire pressures in difficult or soft terrain. However, we recognize that many customers really like the look of a beadlock but do not want to deal with the routine maintenance that goes along with installing beadlock wheels on their daily driver. AEV designed the family of DualSport wheels so they can be used as either true beadlock wheels or as non-beadlock wheels, by simply swapping out the outer ring and changing the mounting position of the tire. This also allows a customer to purchase a non-beadlock wheel now and be able to upgrade the wheels later by adding the true beadlock ring.

What is the difference between the “Beadlock Ring” and the “Protection Ring”?

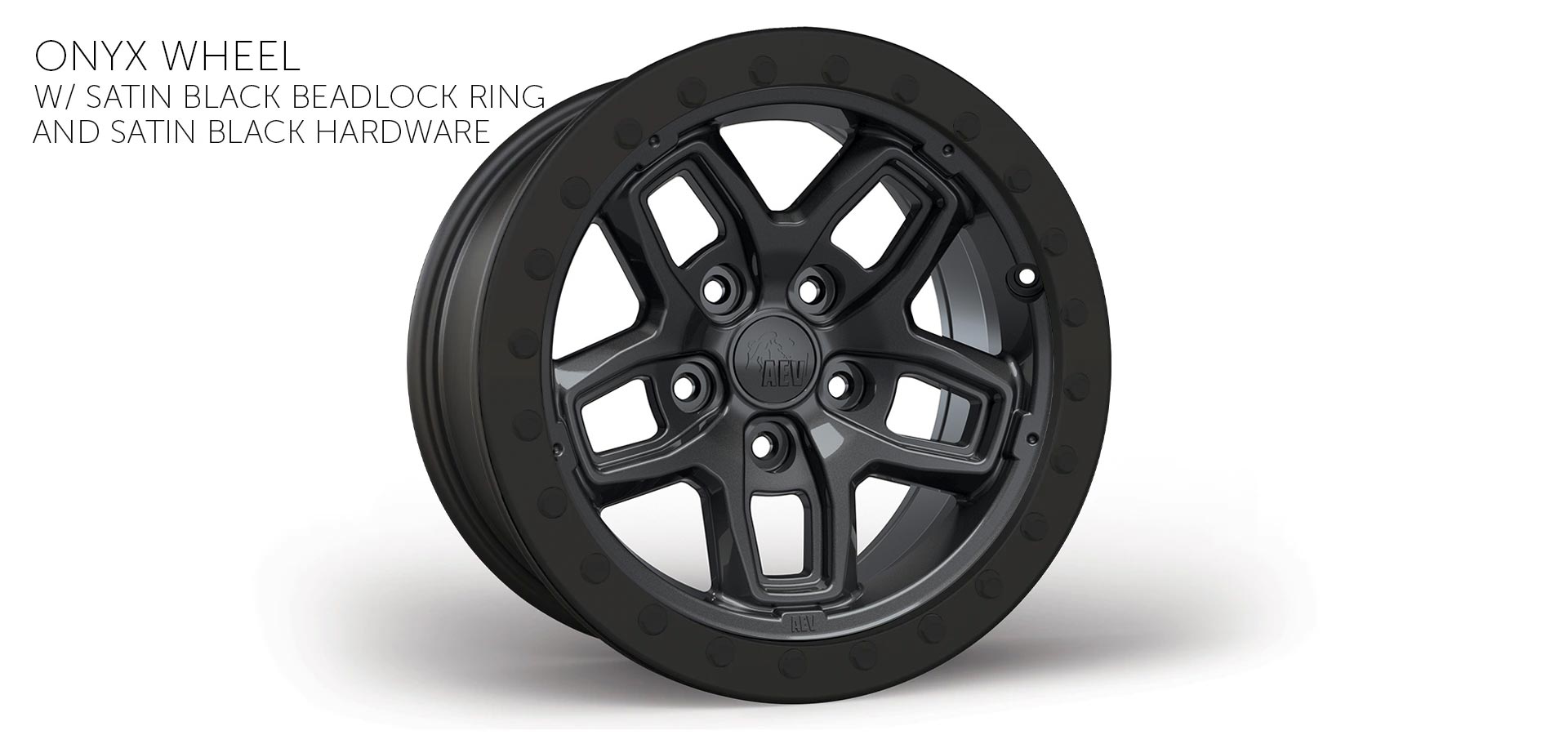

The Beadlock Ring is made from forged aluminum and makes the Borah a true, functional beadlock wheel. The Protection Ring is a non-functional cast aluminum beadlock ring, designed as a sacrificial part to protect the wheel from trail scratches and also provide the same look as the Beadlock Ring.
I am not sure which configuration I want to purchase. Can I buy the wheels now and the rings later?

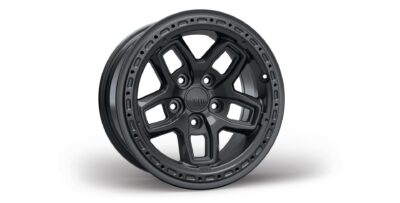

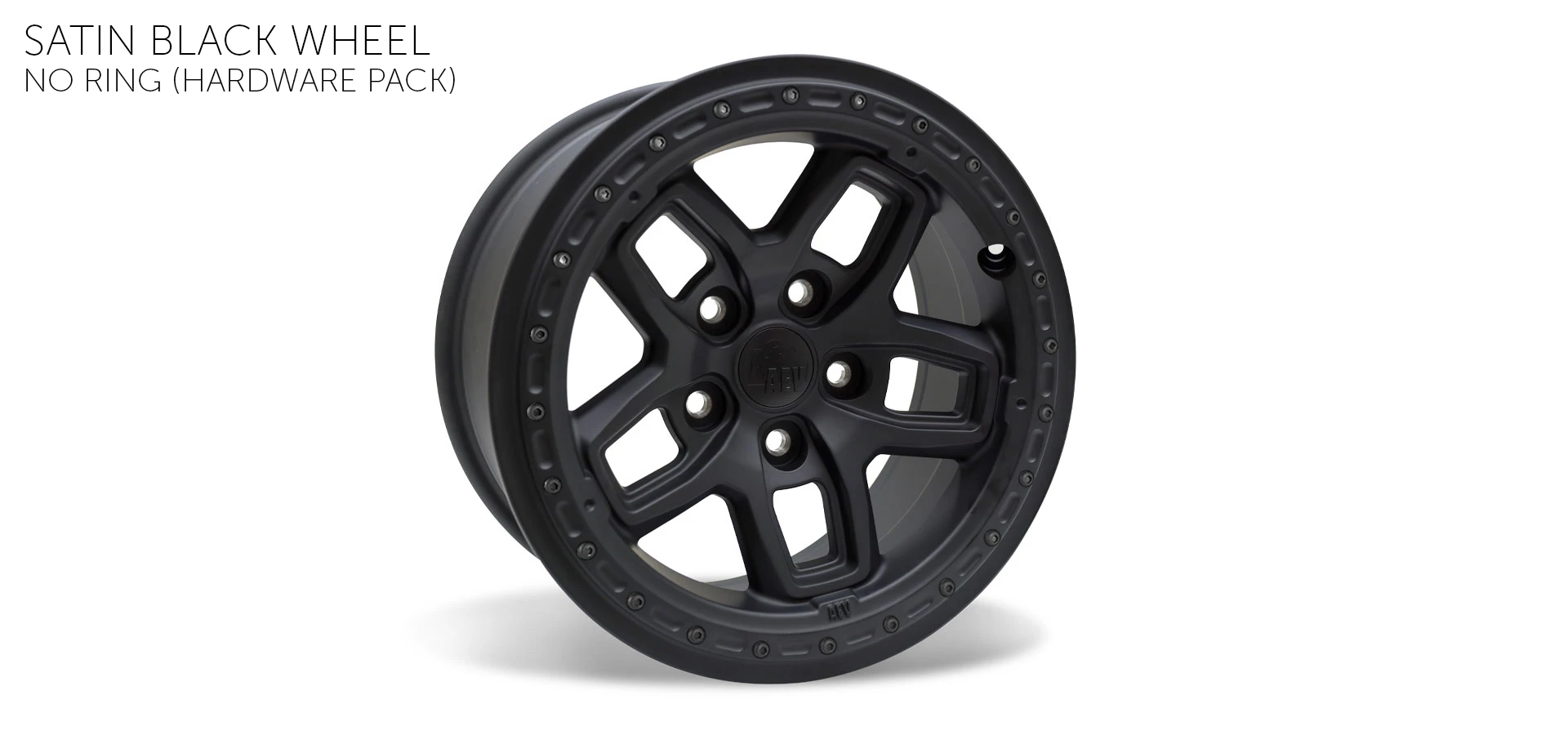

Yes! We designed the Borah to look good even without a ring. If you do not want to purchase a ring right now, we can supply you with nylon bolts that are intended to be used without a ring and keep the holes nice and clean so you have no issues installing the ring of your choice when you are ready. Both the Beadlock Ring and the Protection Ring can be purchased separately online or through any AEV Authorized Distributor.
AEV Borah Beadlock Wheels are DOT compliant, doesn't that mean they are street legal in all 50 states?
Not necessarily. AEV wheels are designed to all applicable DOT Standards regarding wheel construction and have passed the SAE Tests for Radial Fatigue, Impact, and Cornering Fatigue. Currently, DOT or SAE has no specific regulation or test requirements for beadlock wheels. Additionally, some states have laws against multi-piece wheel designs. This means that any beadlock wheel design would technically be illegal in these states. As a consumer, your first step should be to research your state’s laws regarding multi-piece/beadlock wheels before purchasing the Borah wheel (with the Beadlock Ring) for steet use. AEV recommends purchasing the Borah wheel with the Protection Ring for daily driven vehicles – this configuration IS street legal in all 50 states. As a general policy, we recommend that beadlock wheels be used for off-road purposes only.
Other companies make beadlock wheels and don't claim they are DOT compliant. What makes the Borah any different?

Most companies start with a standard steel or aluminum wheel and literally cut off the outer bead and weld on a new beadlock adapter. After this major structural modification, the wheel must be completely re-tested per DOT guidelines in order to claim it is DOT compliant. Most companies don't bother with this and simply don't make the claim. The Borah is designed and cast as a beadlock wheel, so it is tested to the same SAE standards as any non-beadlock AEV wheel.

Can I run the Borah wheel with a beadlock ring on the street?

Well, assuming your state has no specific ban on multi-piece wheels, you certainly could. But just because you can, is it a good idea? That depends on you. Beadlock wheels are a specialty piece of equipment and as such take specialty maintenance and awareness to be used safely. If you want them because they look cool, beadlock wheels are certainly not for you – and that is primary reason why we designed the Borah to be dual purpose wheel. Proper maintenance of these wheels is critical and requires the consumer to do the initial install correctly, re-torque the wheels at least once a month, and replace all the bolts every year at minimum. It's a good idea to develop a routine of looking over the wheels at every fuel stop, just as you would check your engine oil. Beadlock wheels are not for everyone and therefore, as a general policy, we recommend that they be used for off-road purposes only.

I want to purchase the Borah with the Beadlock Ring but I've heard beadlock wheels can't be balanced. Is this true?
There are two sides to this misconception. The first goes back to the old cut and weld method of creating a beadlock wheel. Anytime a wheel is cut and welded, balance can be a major issue and often times it is the wheel causing the issue. AEV Beadlocks are cast as a beadlock and do not experience this issue. Proper balance can also be compromised by improper mounting of the tires to the wheels. It is quite common for a tire to be mounted in such a way that the tire is not set on the wheel properly, and this can wreak havoc with balance. It's very important to follow the instructions when installing the functional Beadlock Ring and then drive the vehicle before balancing the tires.
What is the maximum recommended tire size with the Borah wheel?

The Borah wheel will accommodate up to a 40x13.50R17 tire, but we recommend either a 35x12.50R17 or 37x12.50R17.

I would like to customize my Borah wheels to match my Jeep. Do you recommend painting or powder coating my wheels and rings?
Painting is definitely the way to go. As a general safety precaution, AEV does not recommend powder coating any cast aluminum wheels. The heat range and duration of the powder coating process may overlap the heat treating and aging of aluminum wheels. For this reason, powder coated wheels will not be covered under AEV’s lifetime structural warranty.
Is the offset the same as other AEV wheels?
The offset of this wheel is the same as our other JL wheels, but different than our JK wheels. The JL Borah offset is +25mm and backspacing is 5.72”. Keep in mind that when run as a true beadlock (off road use only), the width outside of the factory fender flares will be greater than with other AEV wheels.
AEV products are usually made in the USA, so why is the Borah wheel manufactured overseas?

At AEV, we remain committed to American manufacturing, and we would much rather have our wheels manufactured in the US. But right now, you can’t get wheels made in the USA at aftermarket volumes. Still to this day, the only cast wheel plants left in the US are for high volume OE wheel programs. So unfortunately, buying from China is a necessary evil of being in the aftermarket cast wheel business. We have made the effort to buy from a high quality Chinese plant. Our plant also produces OE wheels for Volkswagen, Audi, BMW and Harley Davidson, among others. Our supplier has American employees on the ground in China who oversee our programs for us, and we have been over to China to inspect and visit the plant in person. When lower volume wheel manufacturing becomes feasible again in the US, we will be first in line.

What is the warranty?

All of AEV’s wheels carry a lifetime structural warranty against manufacturer defects.
