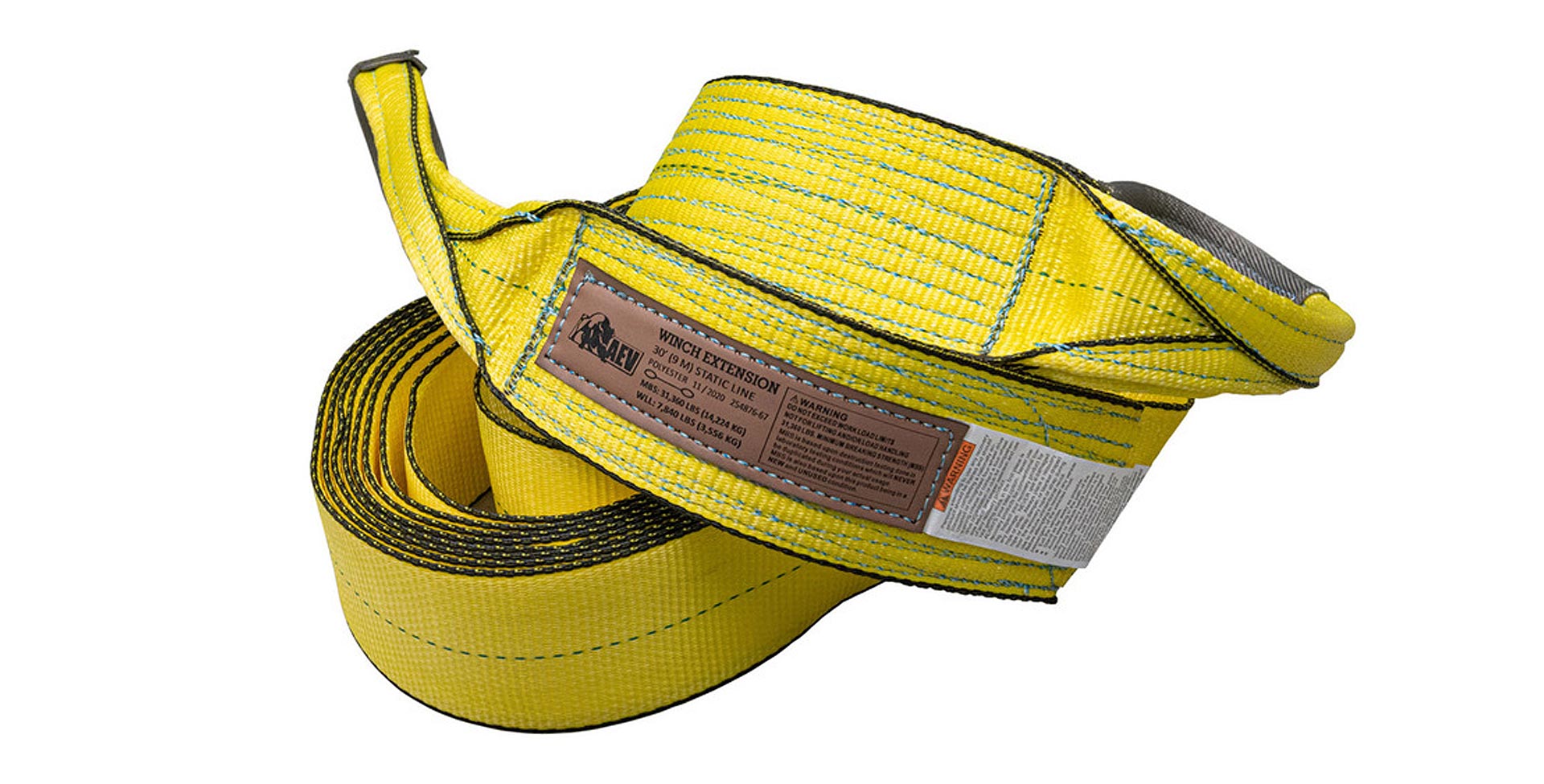

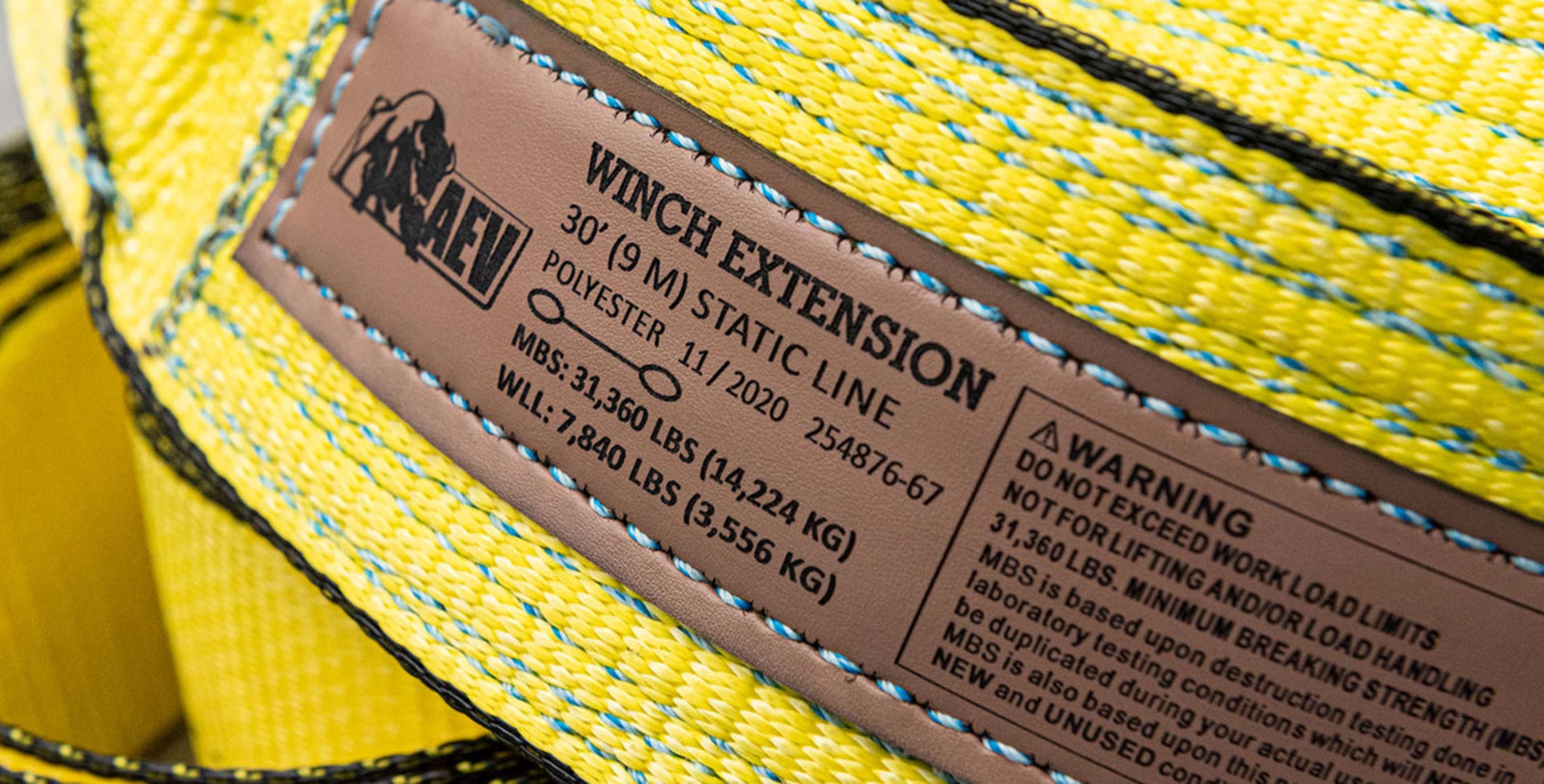

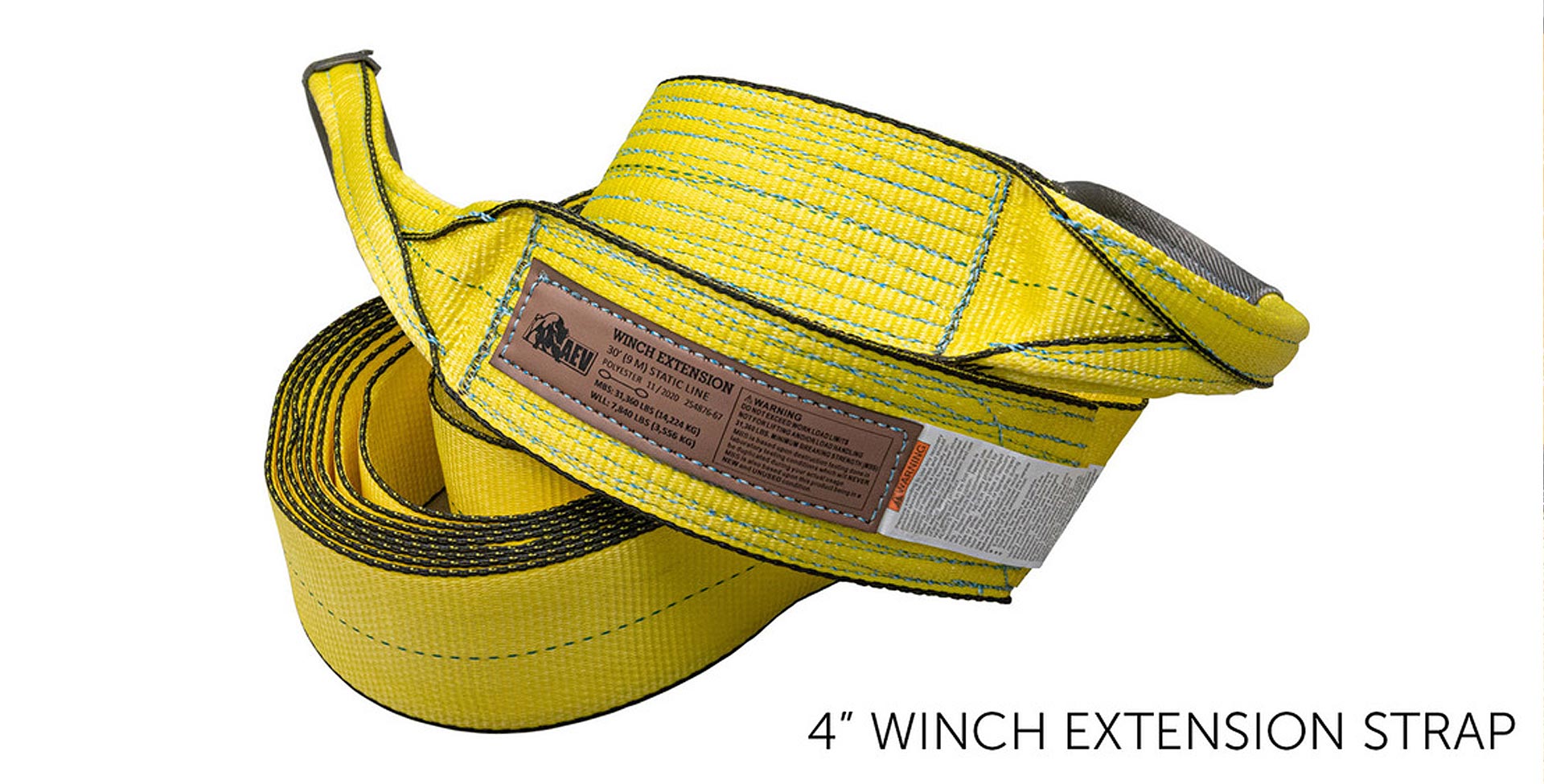

AEV Winch Extension Straps
$83.00 – $127.00
Adding a winch to your vehicle is one of the most important upgrades anyone who travels to remote locations can make. However, sometimes having just a winch is not enough. A Winch Extension Strap safely extends the length of your winch’s cable enough to reach your desired recovery or anchor point. If a vehicle recovery involves one or more snatch blocks, you are even more likely to come up short on cable, so keeping an AEV vehicle winch extension strap in your recovery kit ensures that your future recovery efforts will never fall short.

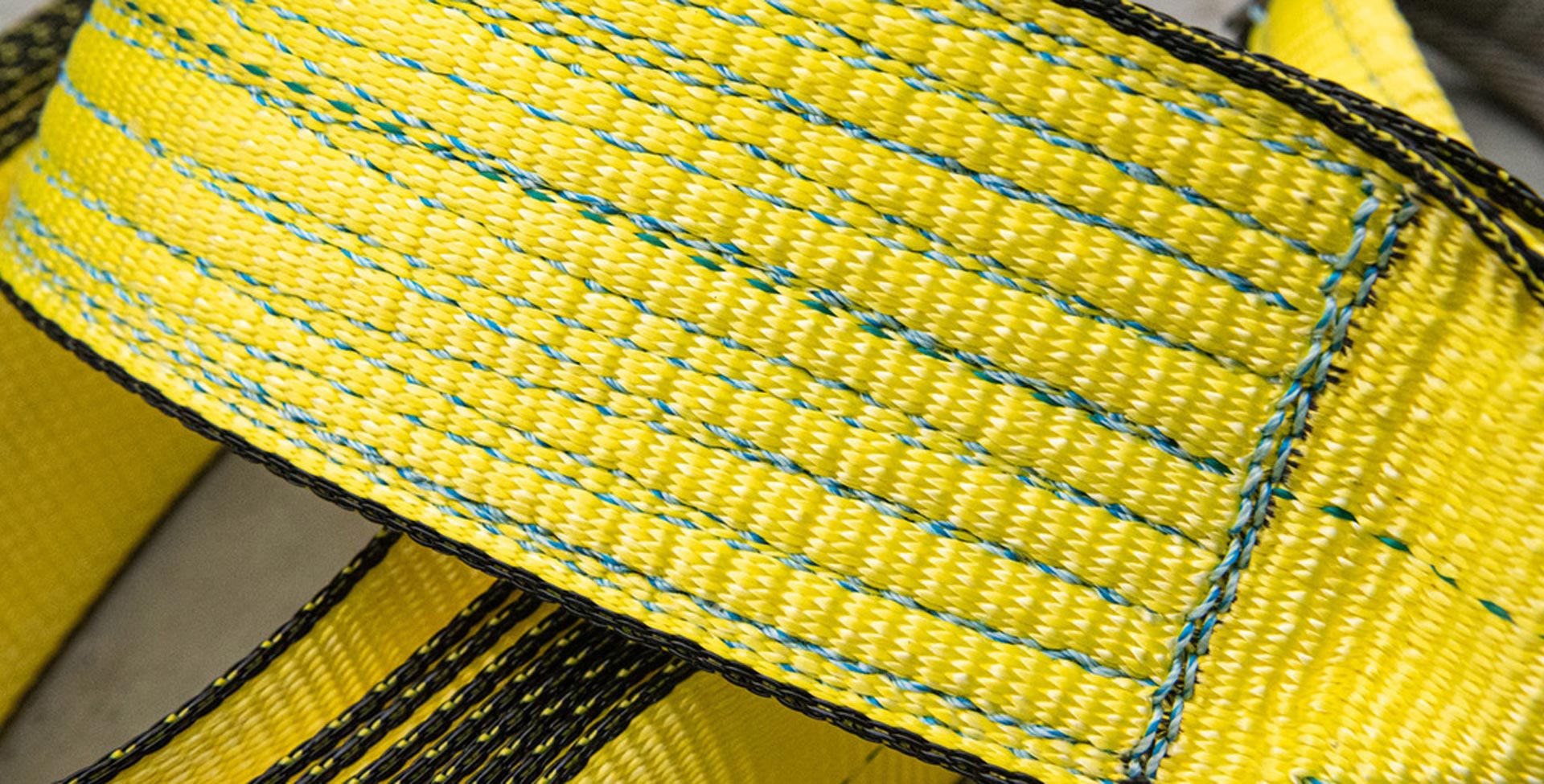

To further maximize the service life of the AEV Winch Extension Strap, a unique edge guard was added for improved protection against cuts and abrasion. Investing in durable and versatile gear ensures peace of mind and emergency preparedness, allowing drivers to confidently navigate off-road adventures and assist others in need. You can read more and see photos of AEV recovery gear testing here.
Part Number | Dimensions | Minimum Breaking Strength (MBS) | Working Load Limit (WLL) |
80808026AA | 3″x30′ | 23,520 LBS (10,668 KG) | 5,880 LBS (2,667 KG) |
80808024AA | 4″x30′ | 31,360 LBS (14,224 KG) | 7,840 LBS (3,556 KG) |
Please note: Minimum Breaking Strength (MBS) is the minimum force necessary to cause a recovery device to break or fail. Working Load Limit (WLL) is the recommended maximum force a recovery device is intended to safely support, when the force is applied in-line and through the centerline of the device. The WLL is calculated by dividing the Minimum Breaking Strength (MBS) by a safety factor that is generally around 4-to-1. For example, the AEV Snatch Block has an MBS of 52,000 LBS, so when divided by a safety factory of 4-to-1, the WLL becomes 13,000 LBS.
Tech Specs:
- Size:
- 3" x 30', 4" x 30' (HD)
- Minimum Breaking Strength (MBS):
- 23,520 LBS (10,669 KG), Full-Size 31,360 LBS (14,224 KG)
- Working Load Limit (WLL):
- 5,880 LBS (2,667 KG), Full-Size 7,840 LBS (3,556 KG)
- Material:
- Polyester webbing w/ reinforced eyelets
- Color:
- Polyester
- Manufactured In:
- China
Product FAQs
- Who is the right customer for your HD Recovery Gear?
Anyone driving SUVs or Full-Size Trucks with a trail weight in excess of 7,000/lbs. Using AEV's HD Recovery Gear for lighter applications could be potentially dangerous, particularly with dynamic straps and ropes that only stretch properly with vehicles of a certain weight.
- What is the difference between MBS and WLL?
Minimum Breaking Strength (MBS) is the minimum force necessary to cause a recovery device to break or fail. Working Load Limit (WLL) is the recommended maximum force a recovery device is intended to safely support, when the force is applied in-line and through the centerline of the device.
- What is the purpose of a Winch Extension Strap?
A Winch Extension Strap safely extends the length of your winch’s cable enough to reach your desired recovery or anchor point.
- Is this a dynamic or static strap?
The AEV Winch Extension Strap is static. This means the strap does not have any stretch or elasticity, like a dynamic recovery strap would have. A dynamic strap is ideal for freeing a stuck vehicle but static straps are preferred for tree straps and winch extension straps.
- I have seen other straps fray on the edges fairly quickly. Is this common with all straps?
No, not all straps. AEV uses a special edge guard on the Winch Extension Strap to help extend the service life and protect against normal wear and abrasion from use.
