AEV 35″ Tire Clearance Kit for 2023-2024 GMC Sierra 1500 AT4X AEV Edition
AEV 35″ Tire Clearance Kit for 2023-2024 GMC Sierra 1500 AT4X AEV Edition
$999.00
In Stock
The 2023-2024 GMC Sierra 1500 AT4X AEV Edition stands out as a capable off-road vehicle from the factory. Engineered with serious trail capability in mind, it’s already equipped to handle challenging terrain. However, for many enthusiasts, the desire for maximum performance and a commanding presence leads to considering larger tires, specifically moving up to a 35″ size. These larger tires not only enhance ground clearance for tackling tougher obstacles but also contribute significantly to the truck’s aggressive stance. The challenge arises because the factory setup of the AT4X AEV Edition, while capable, wasn’t specifically engineered to accommodate the full range of motion required by 35″ tires. Attempting to fit this larger size without modification often results in frustrating tire rubbing, restricted suspension travel, and potential damage, particularly when pushing the vehicle’s limits off-road.
This is where the AEV 35″ Tire Clearance Kit becomes an essential upgrade. Tailored specifically for your 2023-2024 GMC Sierra 1500 AT4X AEV Edition, this comprehensive kit provides the necessary modifications to confidently and safely run 35″ tires when combined with the AEV Salta XR Wheel or any 17×8.5 wheel with a +12ET wheel offset.

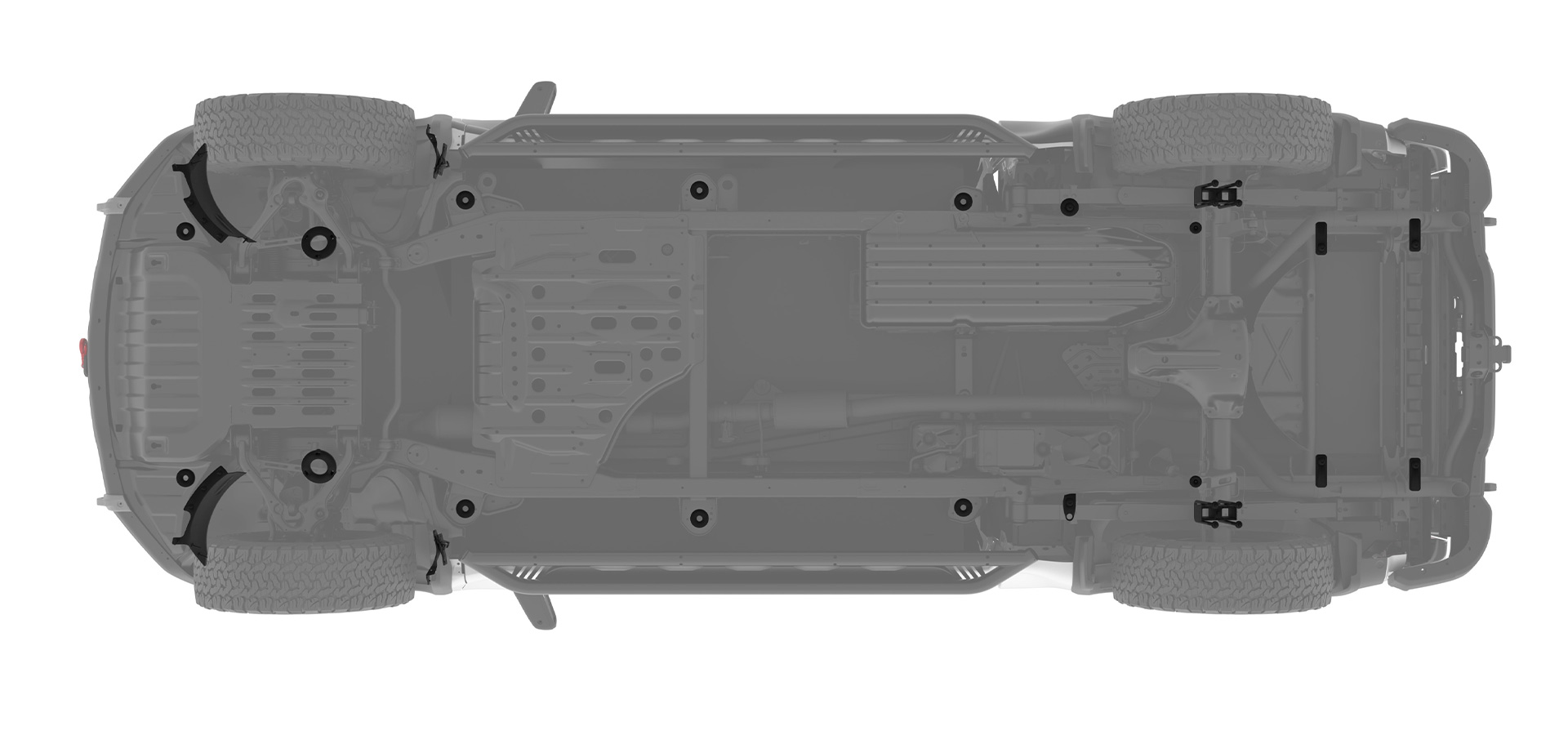

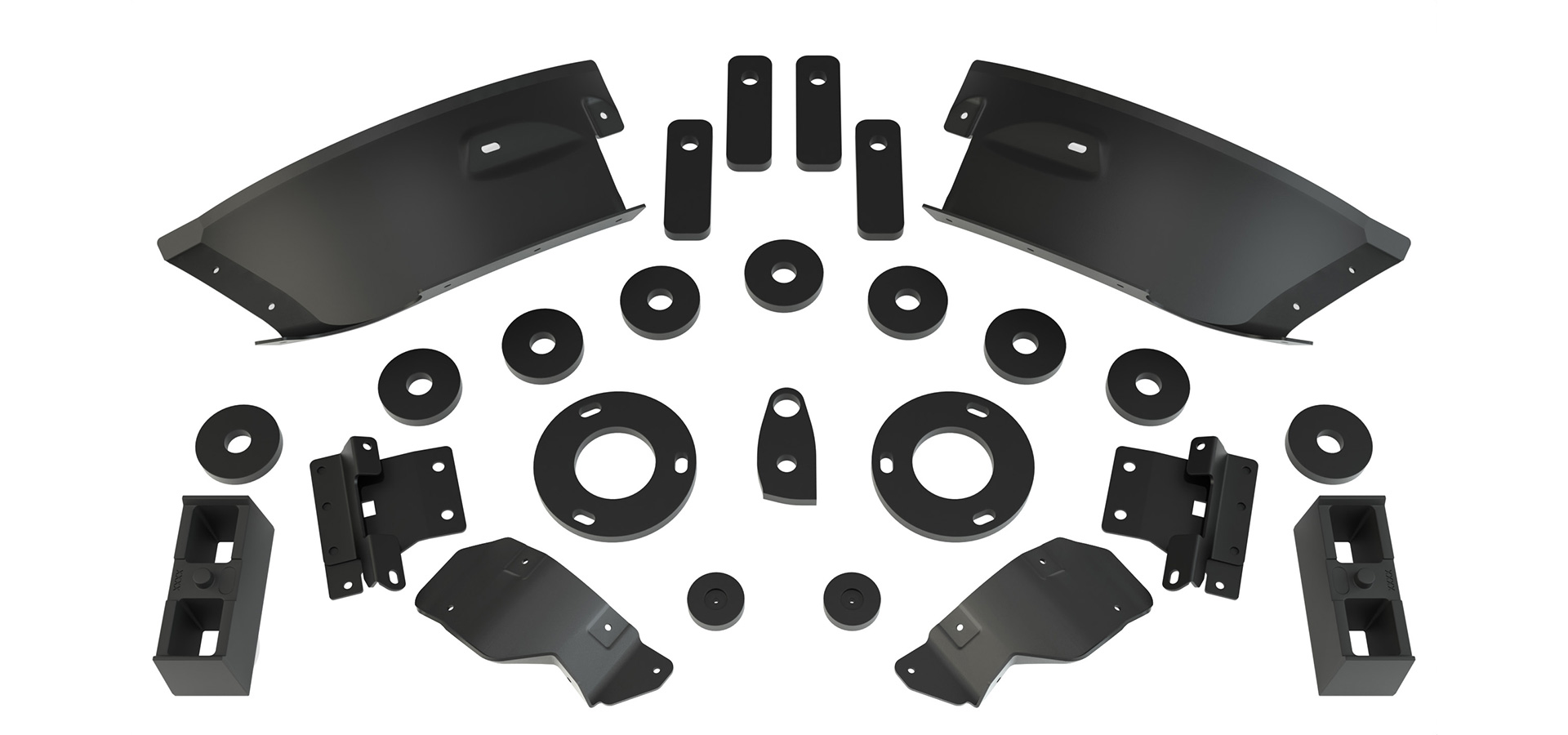

The low lift height of the AEV 35″ tire clearance kit prevents exceeding allowable ball joint and CV angles, unlike many taller aftermarket suspension kits on the market. It incorporates a 1″ Body Lift and Suspension Kit featuring 1/2″ body and bed spacers along with a 1/2″ strut spacer to achieve the controlled lift needed. In the rear, it replaces the standard 2″ spacer with a 3″ rear spring spacer. The kit also includes precision-designed brackets and closeout panels. This ensures your larger 35″ tires have the unrestricted space required to steer, articulate, and cycle through the entire suspension travel without interference or damage, even during demanding off-road excursions.
The kit utilizes materials carefully chosen to complement your Sierra’s existing finishes and plastics. The brackets and spacers are constructed from robust A36 Steel featuring durable Zinc and E-Coat finishes. The closeout panels are crafted from ABS Plastic, designed to blend aesthetically with the factory flares and other plastic components. Dependable cast iron is used for the rear lift blocks, and all included hardware meets OEM standards. The result is a refined, integrated appearance coupled with the significant clearance enhancement vital for unlocking the full off-road potential of your AT4X AEV Edition.
KEY FEATURES:
- Eliminates Tire Rubbing: Ensures clearance for 35″ tires, even during maximum suspension articulation.
- OEM-Quality Integration: Closeouts are designed to match factory plastics for a seamless finish.
Product Video
Installation:
- Difficulty Level:
- Moderate
- Estimated Install Time:
- 12 Hours
Installation Guides:
Front Closeout Panel Trim Template
Wheel Well Liner Trim Template
Product FAQs
- Will this work on vehicles without the AEV front bumper?
No, the front bumper closeouts are specific to the AEV bumper. Non-AT4X AEV Edition bumpers do not provide enough clearance for this size of tire.
- Will this fit on other trim levels or without flares?
No, the front fender closeouts are specific to the AT4X flare extensions.
- Will this work with factory wheels?
This kit will not work with factory wheels. 35x12.5 or equivalent tires will rub on the backside with factory offsets. AEV recommends 8" to 9" wide wheels with +5 to +12 millimeter offset.
- What tire size is required?
AEV recommends a 315/70R17 or 35x12.5 tire or smaller. There is limited room for turning and suspension articulation and going taller or wider will likely cause tire rubbing.
- Why don't the suspension spacers match the advertised lift height?
Due to the angle and position of the front struts, the provided half inch spacers give one inch of lift height to the vehicle. The three inch tall rear lift blocks replace the factory two inch block to provide one inch of suspension lift.
- Why doesn't this kit fit the 2025 model year?
This kit is specifically designed for the 2023-2024 model years. The key difference lies in the design of the leaf spring top plate. The 2025 model year features a rounded leaf spring top plate, whereas the 2023-2024 models have a flat design. Our current U-bolts are engineered to accommodate the flat plate, making them incompatible with the rounded 2025 design.
Customers with a 2025 model year vehicle can make this kit compatible by replacing their rounded leaf spring top plates with the flat-design plates. This modification will allow our U-bolts to fit correctly. The process involves clamping the leaf springs together and removing and reinstalling the leaf spring center pin nut swap the top plates. While our shop technicians found this to be a fairly straightforward task, we recommend that this procedure be performed by a qualified mechanic or an individual with experience in vehicle maintenance. The GM part number for the flat leaf spring top plate is 15733654. You will need to purchase two of these, as they are not side-specific. You can find this part at authorized GM parts retailers or by visiting websites like GM Parts Online.
