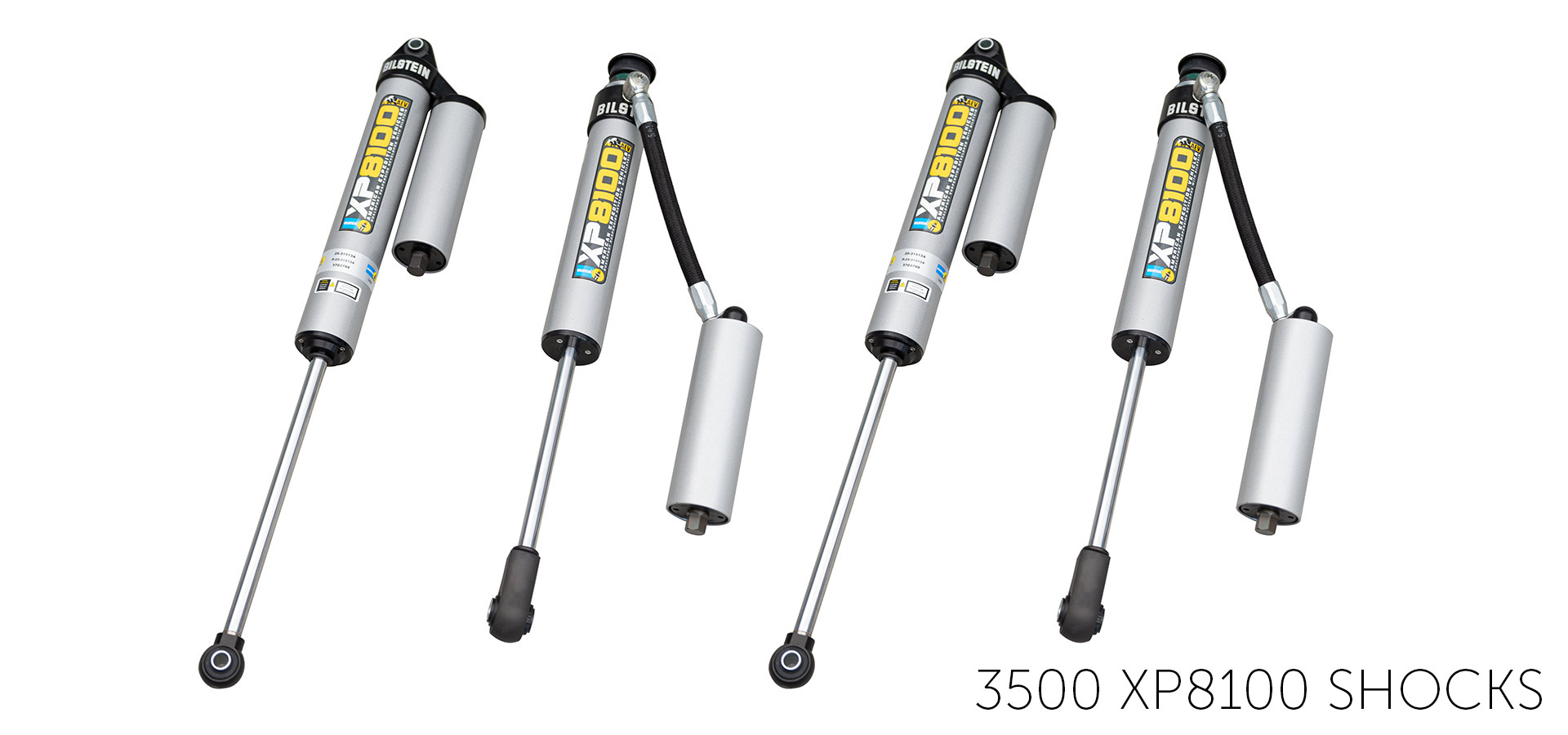

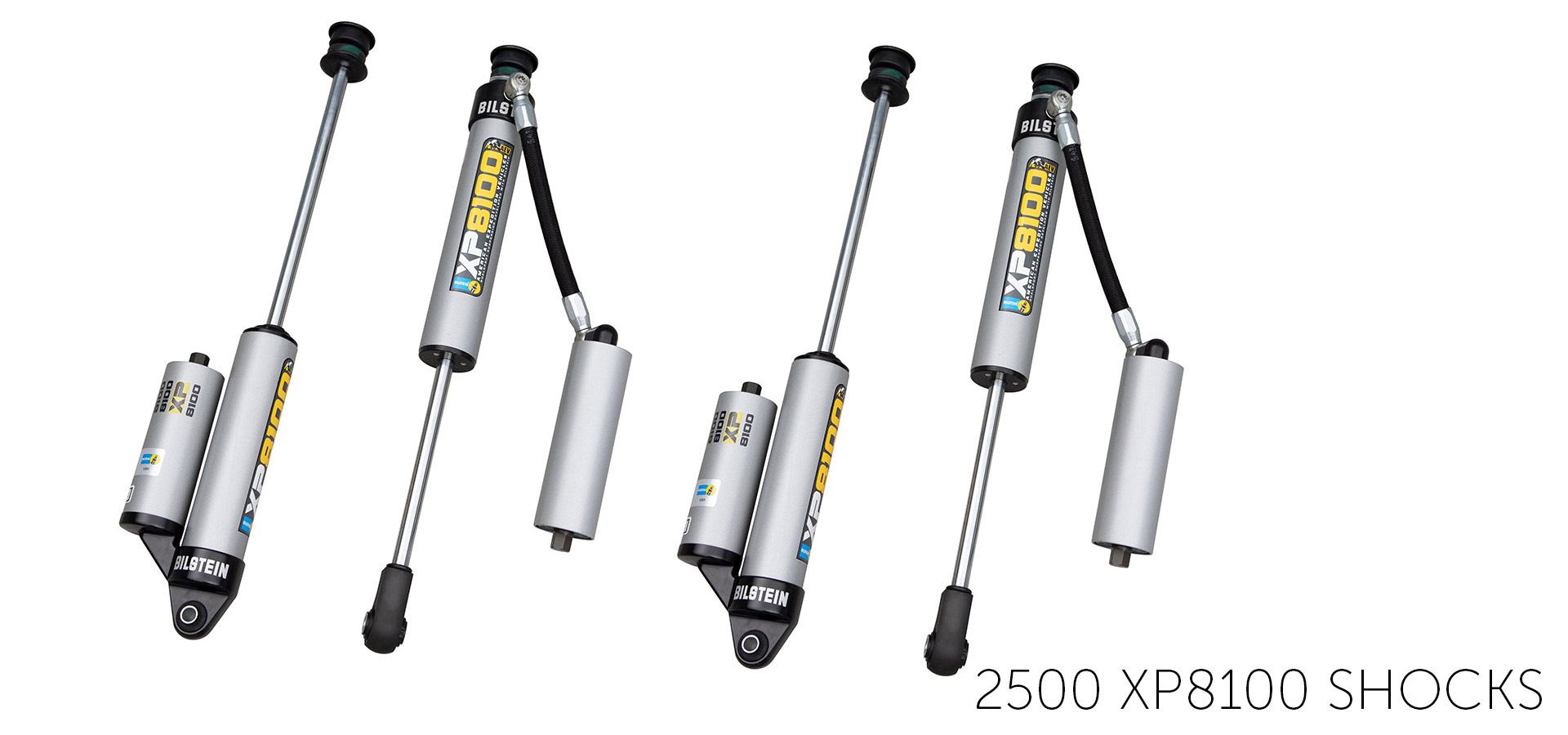

XP8100 Reservoir Shocks for 2014+ Ram 2500 & 3500 HD

XP8100 Reservoir Shocks for 2014+ Ram HD



AEV/Bilstein XP8100 Remote Reservoir Shocks are a high performance, direct-fit upgrade for your lifted 2014+ HD Ram. This upgrade will provide increased dampening performance and consistency over our standard 5100 shocks, especially on heavier trucks that often travel at higher speeds over rough terrain.

Designed for Durability and Performance

These AEV/Bilstein XP8100 shock absorbers are constructed from aerospace quality billet components and tuned by AEV to work in perfect harmony with your outfitted HD Ram. When we tune shocks, we use the same target weight as our Prospector/Prospector XL turn-key conversions to ensure that you get the absolute best possible ride quality and handling, without the degradation in performance, commonly associated with the added weight of bumpers, winch, full size spare, tent, etc.

Heat management is critical for consistent performance and longevity, so these large bore 66mm shock bodies are paired with a unique remote or piggyback reservoir, offering a higher oil volume capacity to control heat while tackling rough road surfaces over long distances – a scenario that overland travelers know all too well. Larger piston area also offers added control in hard use (such as with heavy trucks) and ability to tune for a broader damping range for vehicles that get used with and without added gear.

For improved durability against corrosion, these shocks feature the same silver painted finish as our 5100 series shocks. These shocks are available as a set of (4) for customers looking to upgrade their existing shock package and are now included with our new 3” DualSport XP Suspension Systems for both 2013-2018 Ram 2500/3500 and 2019+ Ram 2500/3500.

Whether rugged trails or asphalt roads, the AEV/Bilstein XP8100 Reservoir Shocks offers consistent comfort and control so you can tame the terrain in style.


Please Note: Some trucks, primarily 2019+, have been found to have incomplete factory welds on the front axle shock mounts. AEV suggests inspecting these mounts for complete weld coverage around the perimeter of the brackets attaching them to the axle tube. If mounts are found to not be welded completely, the welds should be completed by a qualified welder to reduce chances of bracket failure due to the increased forces from the 8100 dampers and mounting.

Key Features:

  • Fits 2014+ Ram 2500/3500 w/ 3” of suspension lift
  • Direct fit for an easy installation
  • 2500 and 3500 HD Ram-specific shock tuning for gas or diesel engines provide the best possible ride quality and handling
  • Remote/piggyback reservoirs offer increased oil capacity and ability to tune for broader dampening range for consistent performance over rough terrain
  • 18mm piston rod provides brute tensile strength and reduces internal gas force ramp-up allowing for a smoother ride
  • Billet rod end with vulcanized mounts for an exact OE fit and long-term durability
  • Owner rebuildable
  • Bilstein billet reservoir mounts included
  • Covered by Bilstein’s 2-year warranty

Tech Specs:

2014+ Ram 2500 HD, 2014+ Ram 3500 HD
Kit Contents:

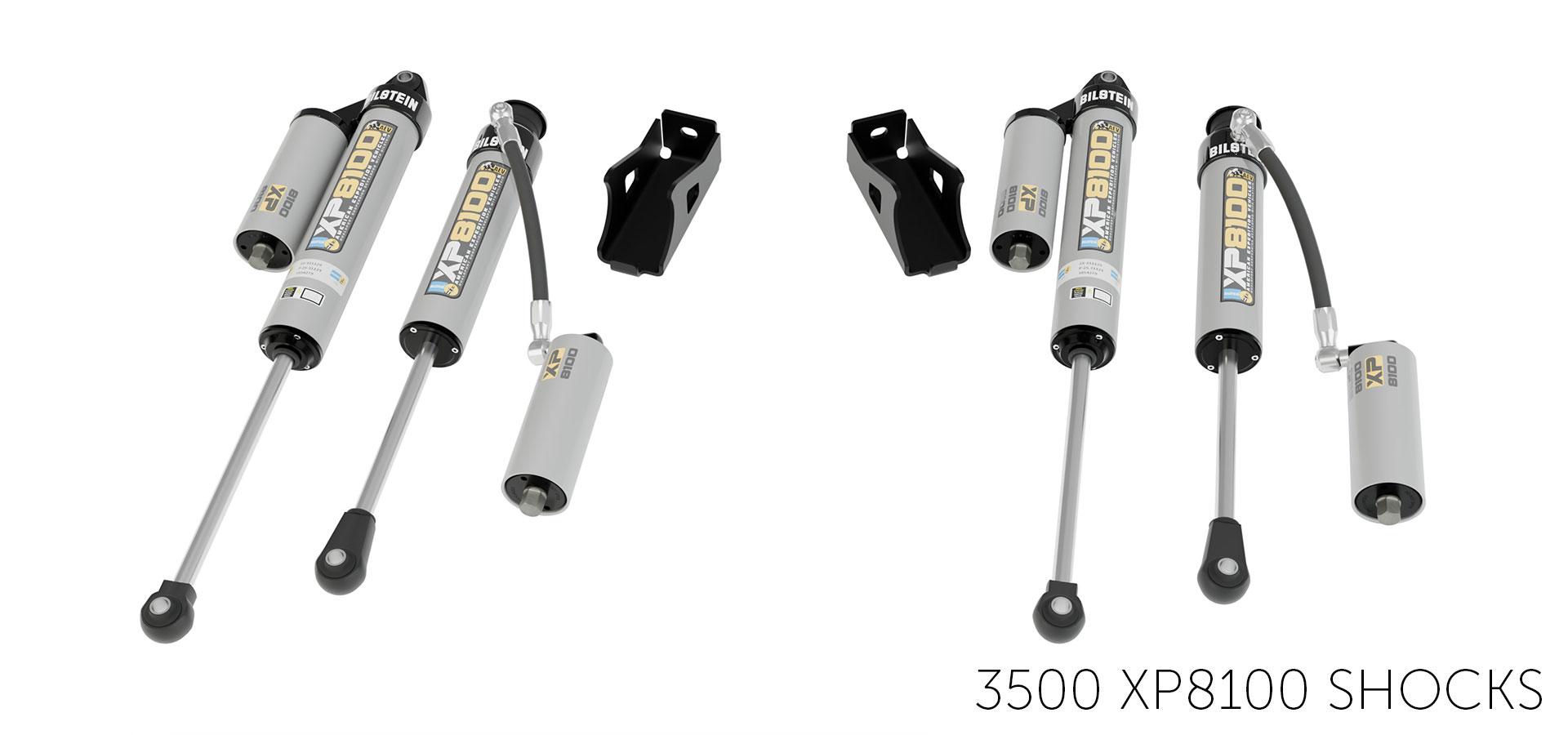

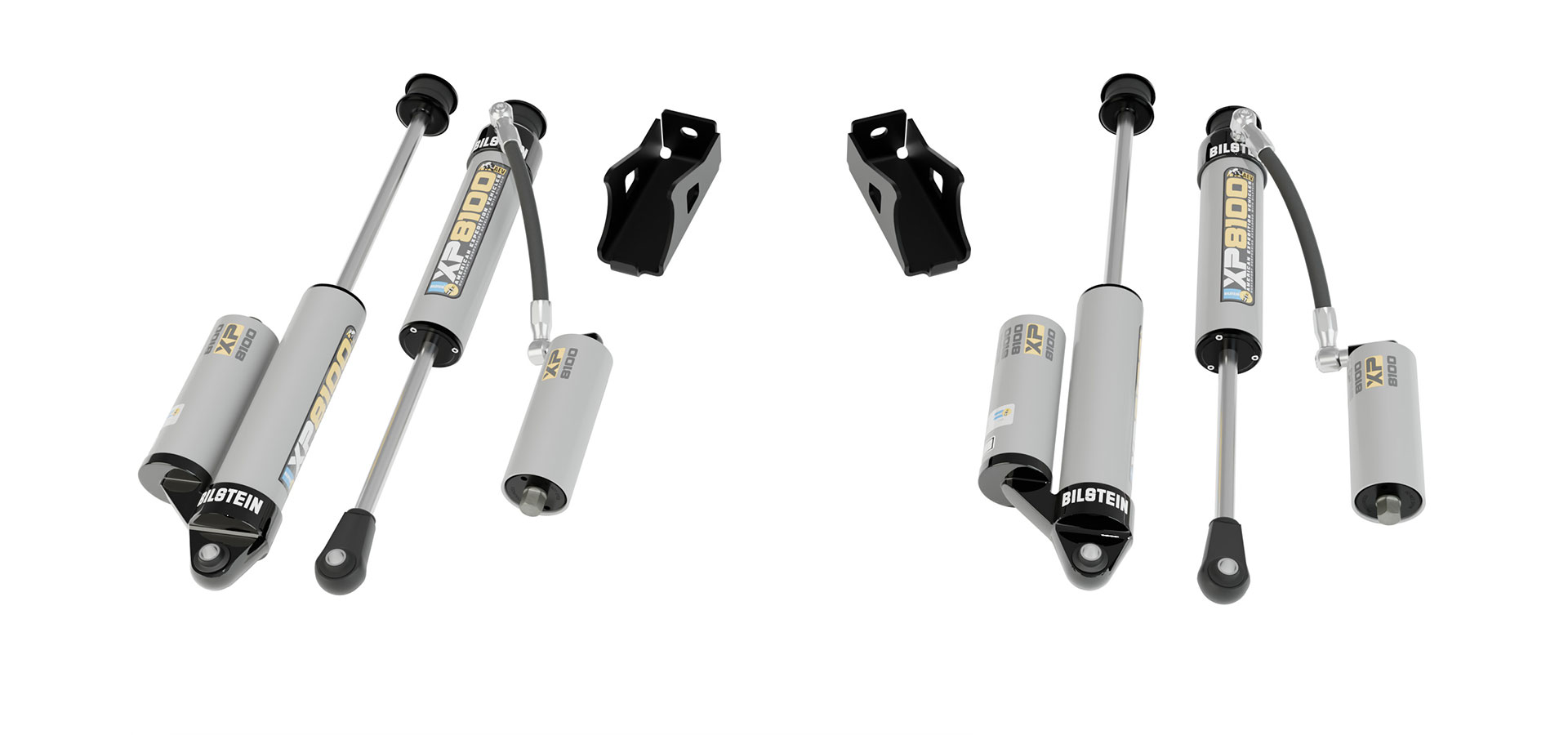

AEV/Bilstein XP8100 Front Reservoir Shocks, AEV/Bilstein XP8100 Rear Reservoir Shocks, Reservoir Mounts
California Prop 65 Warning


Difficulty Level:
Estimated Install Time:
1-2 Hours
Required Tools:
  • Common Hand Tools
  • Torque Wrench

Installation Guides:

AEV XP8100 Reservoir Shocks Installation Guide

Product FAQs

Will I really be able to tell a difference from upgrading to the XP8100?

Honestly, yes. However, the magnitude of the improvement will be somewhat situational. For example, if you have a vehicle that is on the heavy side (typical overland style build-out), you will notice a very significant improvement over the RT5100, both in ride quality and consistency of the dampening when running at higher speeds over rough surfaces, due to the XP8100's ability to manage heat better.

Now, if you were driving that same vehicle around town on the highway, you would still notice an improvement in ride quality and handling over the RT5100 but it would not as be as significant.

At its core, the XP8100 is a true performance upgrade for your vehicle's suspension both on and off-road.

Why aren’t the XP8100 shocks adjustable?

Simply put, we already did the hard work for you. These shocks are tuned by AEV and manufactured by Bilstein specifically for our turn-key vehicle packages. This means if you have a JL Wrangler, Gladiator or Ram with our suspension, bumpers, winch, etc. these shocks are already fully optimized for you.

In a race environment, where track conditions vary race-by-race or even day-by-day, full adjustability is an absolute must but in the real world, it’s just not necessary if you have a well-tuned shock. Adjustable shocks have become all the rage in the off-road community and understandably so (they do look cool) but more often than not, these shocks serious overkill for the vehicle they are on.

Are the XP8100 shocks rebuildable?

While these shocks are designed to be low-maintenance for daily driven applications, it is worth noting that they are in fact user-rebuildable and serviceable. However, with the XP8100 you will not have to contend with the same servicing/rebuild requirements that many aftermarket race shocks have.

Will these shocks work with another manufacturer’s suspension lift?

While these shocks are tuned for our suspension package, etc. these shocks will also work with other suspension lifts of the same height.

How much maintenance does the finish require?

Nothing special, just soap and water. We have Bilstein paint these at their factory for added protection against corrosion (compared to a raw aluminum shock body) and to keep them looking good for years to come.

What is the warranty on the XP8100 shocks?

These shocks carry Bilstein’s 2-Year Warranty.

Where are these shocks manufactured?

These shocks are proudly manufactured in the USA by Bilstein.
