Rear Differential Skid Plate for 2015-2022 Colorado Z71 & ZR2
Rear Differential Skid Plate

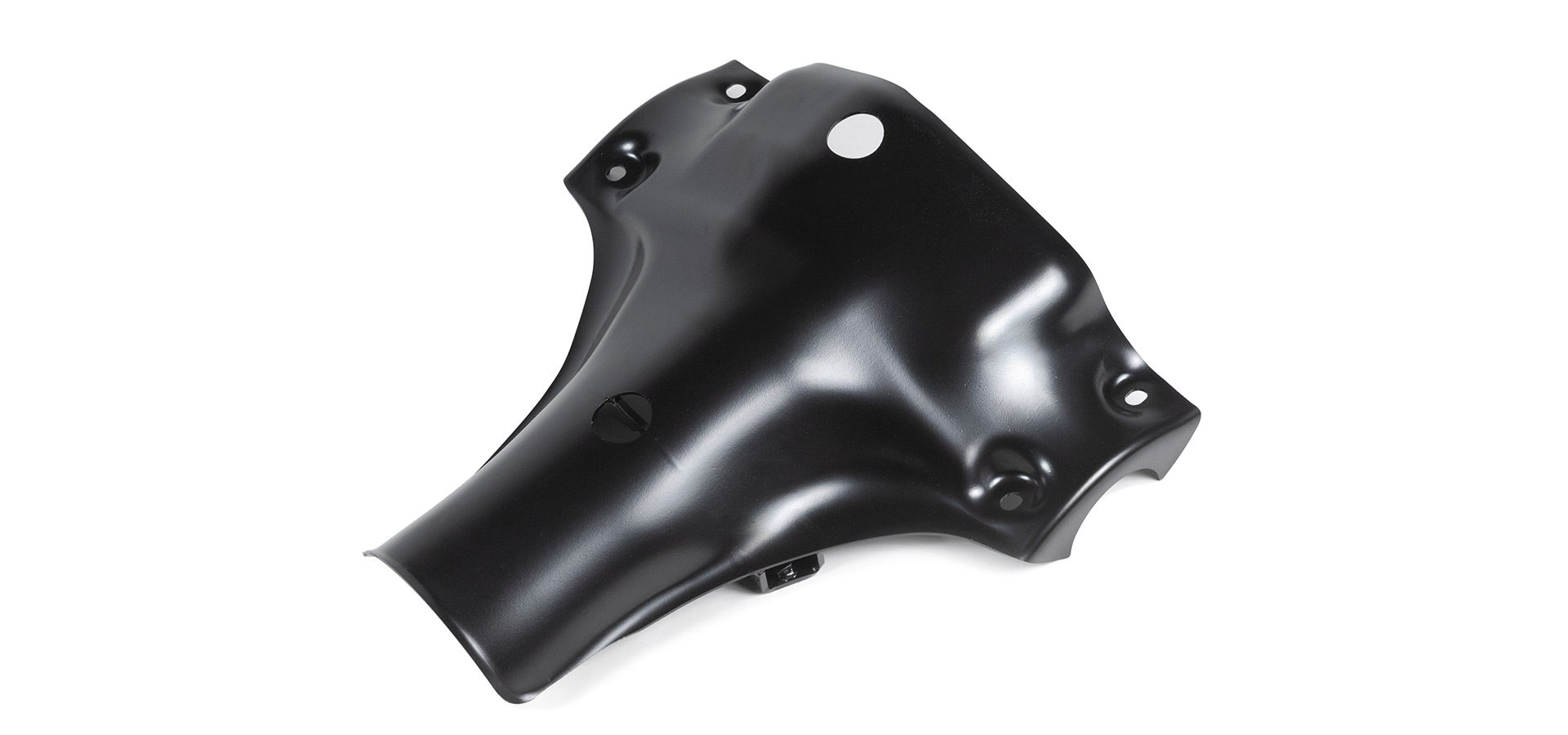

AEV’s Rear Differential Skid Plate (aka: Differential Slider) is standard equipment on the 2019+ Colorado ZR2 Bison and is now also available to non-Bison owners! This Hot Stamped Boron Steel skid plate is designed to help you slide over obstacles, instead of having them stop you dead in your tracks. Situations like this can potentially causing damage to your differential housing or pinion, leave your vehicle disabled in the middle of nowhere.
While the Rear Differential Skid Plate is standard equipment on the ZR2 Bison, it was designed for the Dana M220 rear axle found in most 2015+ Chevy Colorado trucks, including ZR2 and Z71 trim levels. The Hot Stamped Boron Steel construction means that this skid plate is not only super lightweight but also incredibly strong. Complete with hardware, the AEV rear diff skid plate only weighs 9lbs versus 20lbs, like our traditionally manufactured JK diff slider. E-coated for maximum corrosion resistance and is proudly made in the USA.
Hot Stamped Boron Steel (HSBS) is an ultra-high strength, press hardened steel and is most commonly used in automotive applications for passenger impact protection because it is lightweight with an extremely high yield strength (approximately 200,000 ksi vs. mild steel at 25,000 ksi). AEV chose this material for the Colorado ZR2 Bison’s skid plate package not just because of its high strength-to-weight ratio but also for its hardness and resistance to gouging.
- Fits 2015-2022 Colorado Z71 and ZR2 models w/ Dana M220 rear axle
- Protects rear differential housing and pinion
- Hot Stamped Boron Steel – Very high strength/weight ratio
- E-coated and powder coated for maximum corrosion resistance
- Made in the USA
- 2015-2022 Colorado Z71 and ZR2
- Manufacturing Process:
- Manufactured In:
- United States
- Difficulty Level:
- Required Tools:
- Common Hand Tools
AEV Differential Slider for Colorado Installation Guide
- How did working with GM on the ZR2 Bison impact the design of your skid plates?
It was actually a great learning experience for us, especially since skid plates are not something that we have really explored in much depth prior to the ZR2 Bison. Seemingly "minor details", such as the hardware, flag nuts, attachment points, etc. are all details that became very important as to not jeopardize the structural integrity of the frame.
We also had to take into account the dynamic movements of the engine, transmission and exhaust to ensure everything works in harmony and follow best practices in terms of drainage (not only dirt and mud but also for service drains).
- What is Hot Stamped Boron Steel?
Hot Stamped Boron Steel is an ultra-high strength, press hardened steel. Hot Stamped Boron Steel is most commonly used in automotive applications for passenger impact protection because it is lightweight with an extremely high yield strength (approximately 200,000 ksi vs. mild steel at 25,000 ksi). AEV chose this material for the Colorado ZR2 Bison’s skid plate package not just because of its high strength-to-weight ratio but also for its hardness and resistance to gouging.
- Will this skid plate fit my non-Bison Colorado or ZR2?
Absolutely! While this Differential Skid Plate was standard equipment on the ZR2 Bison, we designed it for all Colorado Z71/ZR2 models with the Dana M220 rear axle.
- Did you do any real world testing?
Yes, the ZR2 Bison was developed and tested on some of the most iconic 4wd trails in the United States where under body protection is a requirement if you want to get home under your own power. On the other side of the 4WD spectrum, our skid plates can also be found on the Hall Racing ZR2 that competes in the Best in the Desert off-road racing series.
- Where are your skid plates manufactured?
All of the ZR2 Bison's skid plates are proudly manufactured in the USA.
