Ram Katla Wheel For 2010-2018 Ram HD

Ram Katla Wheel

$240.00

PN: 20404001AD
Clear
Qty:

Ram Katla Wheel

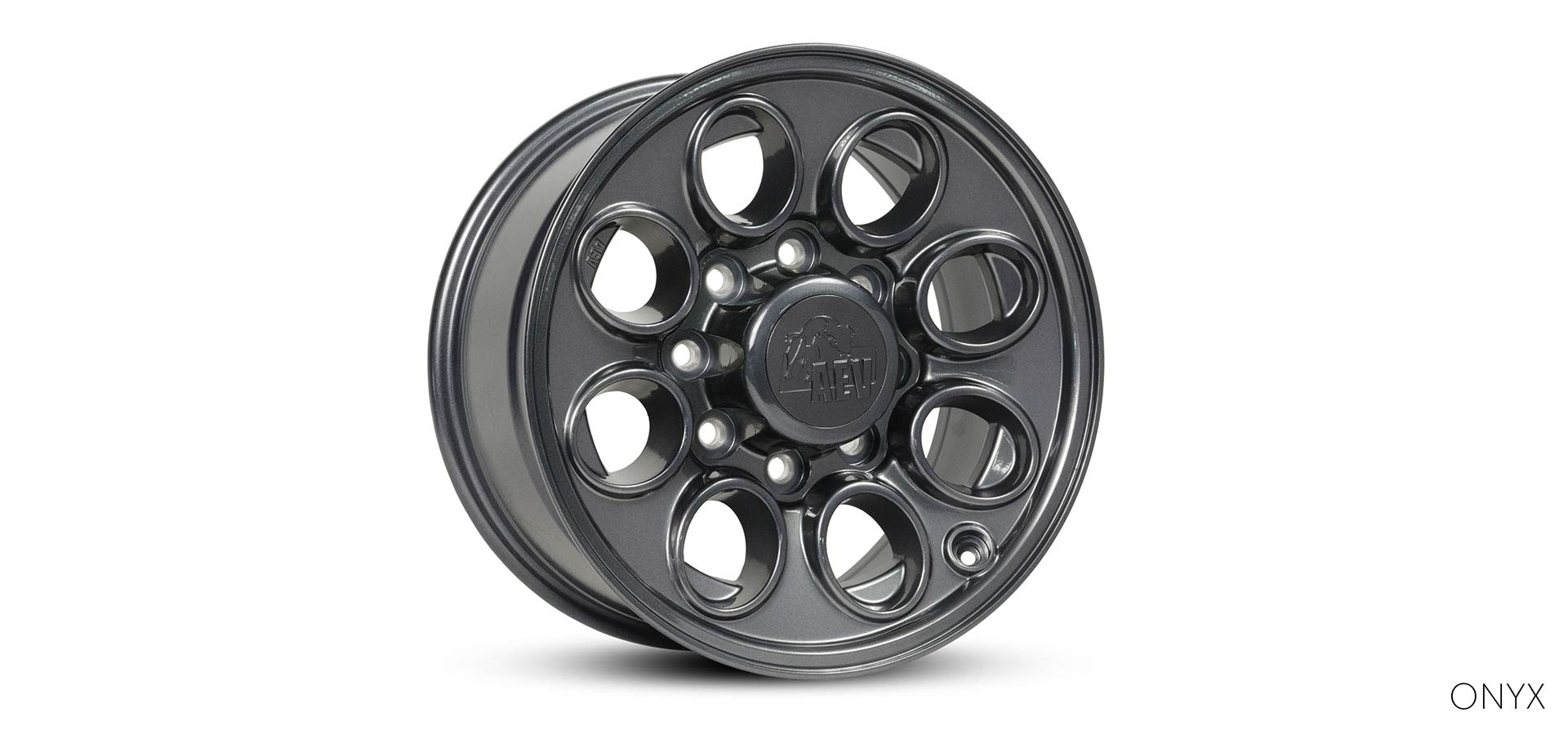

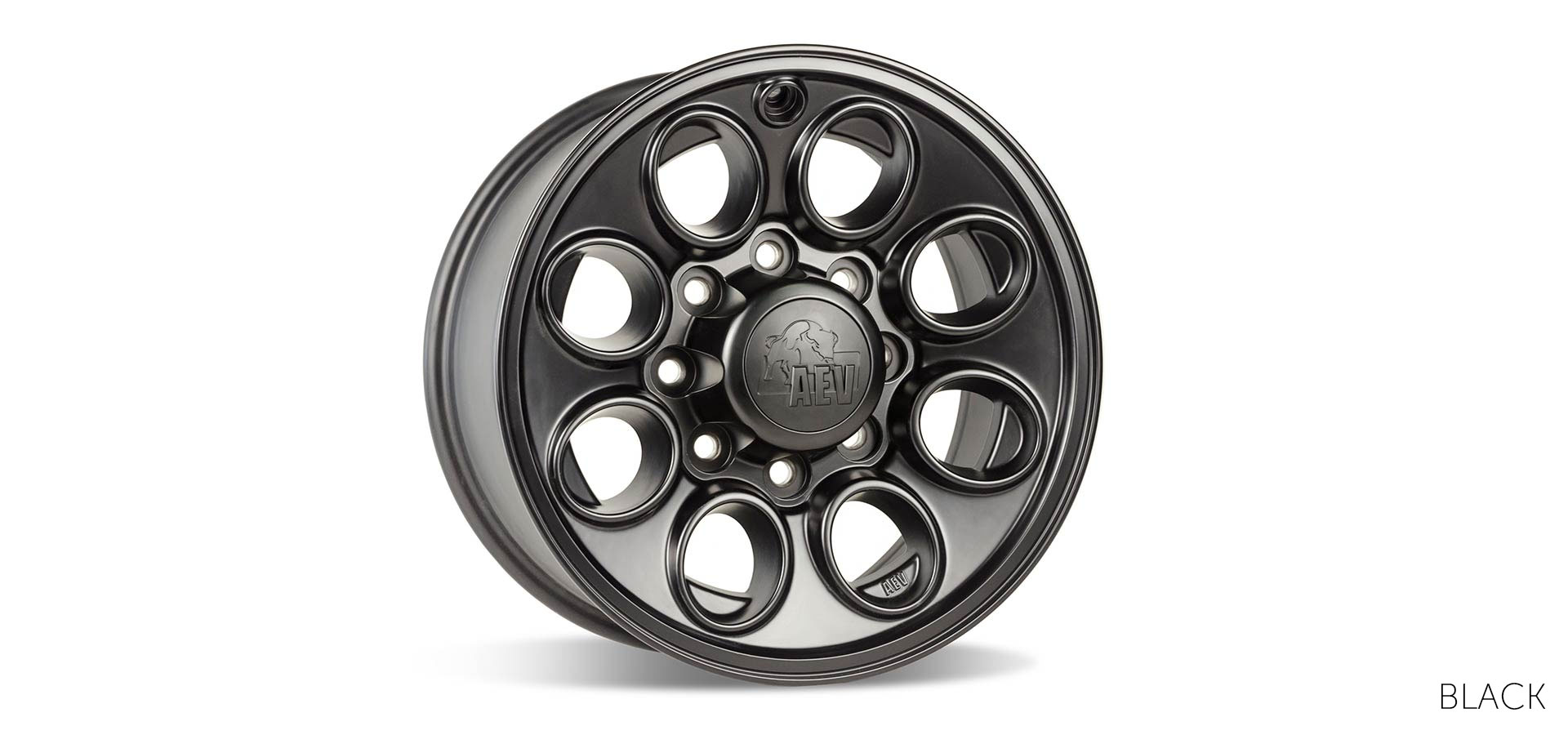

Named after a famous Icelandic volcano, the Katla’s design was inspired by AEV’s popular Savegre wheel for the JK Wrangler, but adapted for use on 3/4 and 1-ton Ram trucks. This proven design not only looks great, but is also capable of withstanding extremely heavy loads. AEV’s signature recessed valve stems provide added protection from rocks and other objects on the trail. The 17×8.5 Katla features a Ram-specific backspacing that is designed for the perfect fitment with or without factory fender flares when using up to a 37” tire. The 17×10 fitment is designed for customers who are using AEV’s HighMark Fender Flares with 40″ tires installed. The Katla’s vehicle specific wheel design provides the optimal balance of tire clearance, scrub radius and handling for your truck. Available in Onyx and a paintable, satin Black finish.

*Be aware that the tire size indicated on the sidewall of a tire is only a general indication of its size and is not necessarily its actual size. Tires can run larger or smaller than their indicated size and larger tires may rub fenders, chassis and control-arms during steering and/or suspension movement.

Please note: As a general safety precaution, AEV does not recommend powder coating aluminum wheels. The heat range and duration of the powder coating process may overlap the heat treating and aging of cast or forged aluminum wheels. For this reason, powder coated wheels will not be covered under AEV’s lifetime structural warranty. All repairs and/or color changes should utilize automotive type liquid paint.

Key Features:

  • A356/T6 cast aluminum construction
  • 4,100 lbs. load rating – tested w/ a 40” tire
  • Compatible with Tire Pressure Monitoring System (TPMS)
  • Recessed valve stems for added protection
  • Tested to stringent SAE J2530 standards
  • Molded AEV Center Cap included
  • Lifetime structural warranty

Tech Specs:

Application:
2010+ Ram 2500/3500
Bolt Pattern:
8x6.5
Offset:
-15.6 mm (17x10), +27 mm (17x8.5)
Backspacing:
4.8" (17x10), 5.8" (17x8.5)
Coatings:
Clear Coat, Paint, Primer
Load Rating:
4100 lbs.

Installation:

Difficulty Level:
Easy
Estimated Install Time:
1 hour (does not include tire mounting)

Installation Guides:

AEV Wheel Installation and Care

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm
