4" DualSport Suspension - SC For 2013-18 Ram 1500 4WD without Air Ride

Ram 1500 4″ DualSport Suspension – SC

$2,495.00

PN: N0340000AB
Qty:

AEV’s 4″ DualSport SC Suspension System for the 2013-18 Ram 1500 4WD introduces revolutionary design concepts and innovative engineering achievements to the aftermarket world of IFS suspension systems. AEV’s lineup of DualSport Suspension Systems have long been synonymous with the unprecedented combination of ride quality, handling and off-road performance they deliver. This IFS suspension system for the Ram 1500 is latest addition to the AEV DualSport family and raises the bar for all other premium suspension systems in the aftermarket.

It is no secret that trucks and SUV’s with IFS suspension systems are known for their superior ride quality both on and off the road. However, IFS suspension systems are far more complex than a traditional solid axle design, so it is imperative that each component that is replaced or modified is designed with the utmost attention to detail in order to maintain the vehicle’s superior ride quality. AEV’s team of suspension engineers have spent a considerable amount of time designing, developing and testing this IFS suspension system to ensure that it meets our standards both on road and off. Anyone who is familiar with AEV’s line of DualSport Suspension Systems has heard us talk extensively about suspension and steering geometry. Improving on or maintaining the factory suspension and steering geometry is the most critical design element for achieving a true, dual purpose suspension system. AEV’s 4″ DualSport SC Suspension for the Ram 1500 is no exception. Every suspension component included with this system is designed with the intent to preserve OE geometry and compensate for the additional ride height.

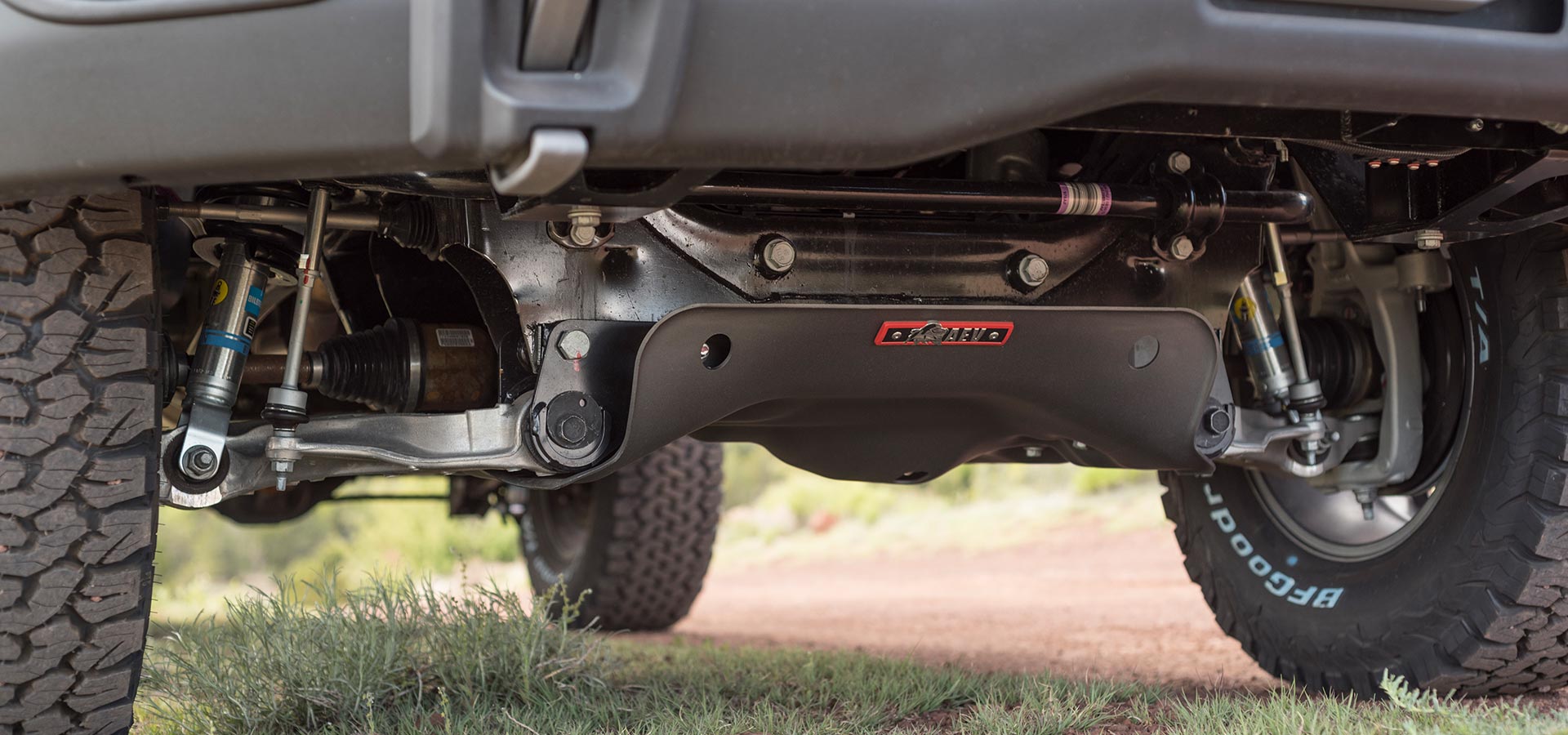

The backbone of the Ram 1500 DualSport Suspension System is AEV’s 4mm thick stamped steel skid plate. This skid plate not only offers a significant level of protection, it also serves as the new mounting location for the front differential. Removing the front differential mounting location from the OE engine mounts to the chassis avoids inner CV plunge-limited travel restriction that is otherwise needed due to the torque-roll of the engine-mounted front differential. By stamping this skid plate (as opposed to traditional press brake manufacturing) AEV was able to achieve a more exact fit, maximizing ground clearance.

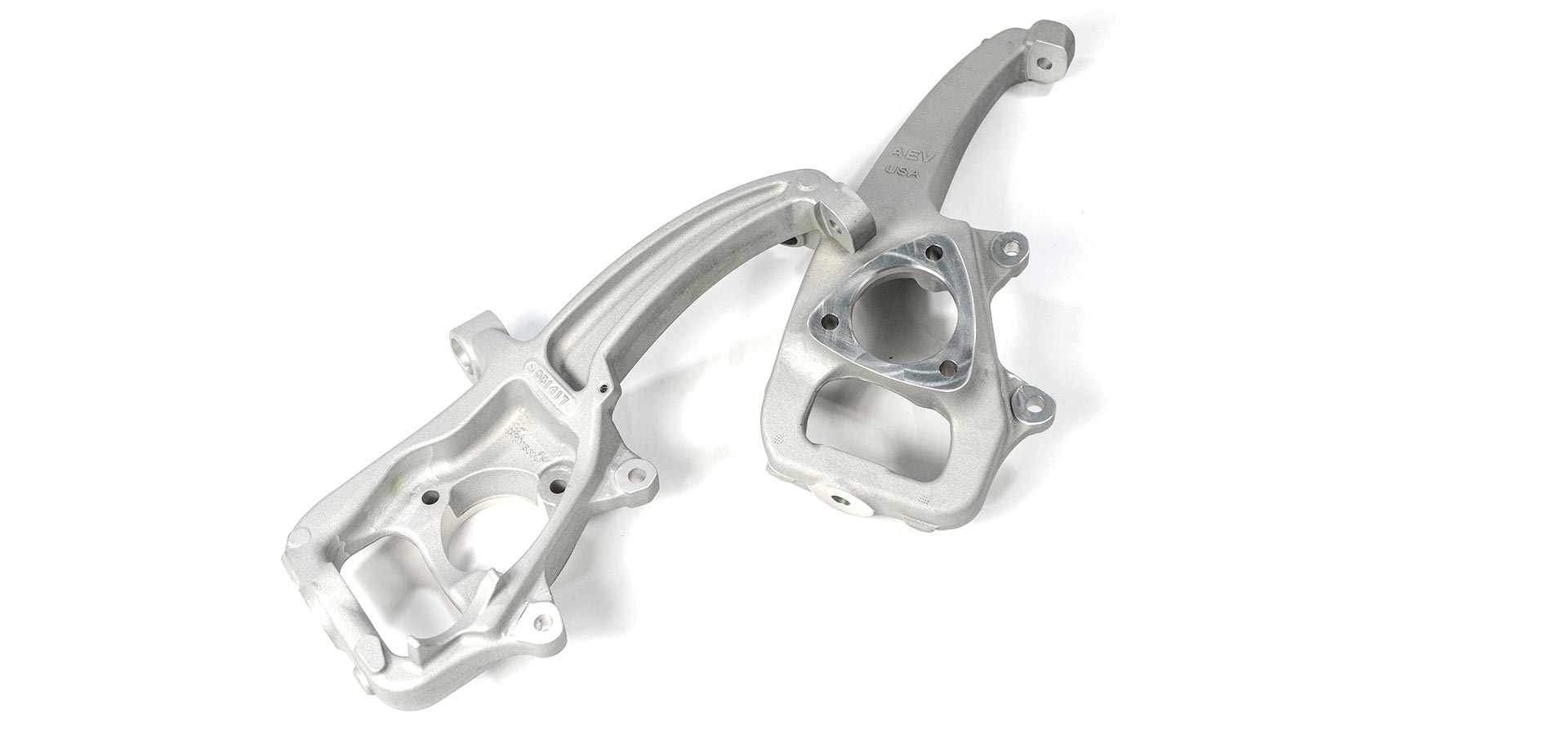

Another critical component of this suspension system is AEV’s exclusive, military grade A206 T4 Aluminum Steering Knuckles. These aluminum steering knuckles are manufactured using a much higher grade aluminum than the factory knuckles, move the front hubs forward +8mm for additional tire clearance and offer a considerable reduction in unsprung weight (up to 25lbs!) when compared to many of the cast iron or steel steering knuckles commonly used in aftermarket suspension systems. This weight reduction plays a critical role in achieving the best possible ride quality and handling out of your truck.

OE front and rear coil springs are retained to preserve the OE ride quality and payload capacity. This also ensures that the intended ride height will be achieved on all cab, wheelbase and trim level combinations. The AEV-specific Bilstein 5100 series front height adjustable struts and rear shock absorbers that are included in this suspension system were developed jointly by Bilstein and AEV engineers exclusively for use with AEV’s Ram 1500 DualSport Suspension System. By utilizing digressive valving, these AEV/Bilstein 5100 shocks and struts offer substantial low-speed dampening. The dampening decreases as vehicle speed increases, providing a great ride quality over a wide variety of terrain.

AEV’s optional ProCal Module give Ram 1500 owners the ability to correct the speedometer when larger tires are installed. When the speedometer is left uncorrected, there is a major degradation in the performance of the stability control (ESP), transmission shifting, and engine performance. Additionally, the Tire Pressure Monitoring System can now be recalibrated to better suit larger diameter tires that may require a different air pressure than the OE tires.



Please note: This suspension system is not compatible with Ram 1500 trucks equipped with the factory air-ride suspension. This suspension system includes AEV’s new Low Profile Tie Rod Ends which allow the fitment of an 18″ wheel. Wheel offset/backspacing is critical, so AEV recommends an 18×8.5 with a 5.23″ backspacing or a 20×9 wheel with 5.25″ back spacing. Factory Ram 1500 20″ wheels will not fit without wheel spacers.

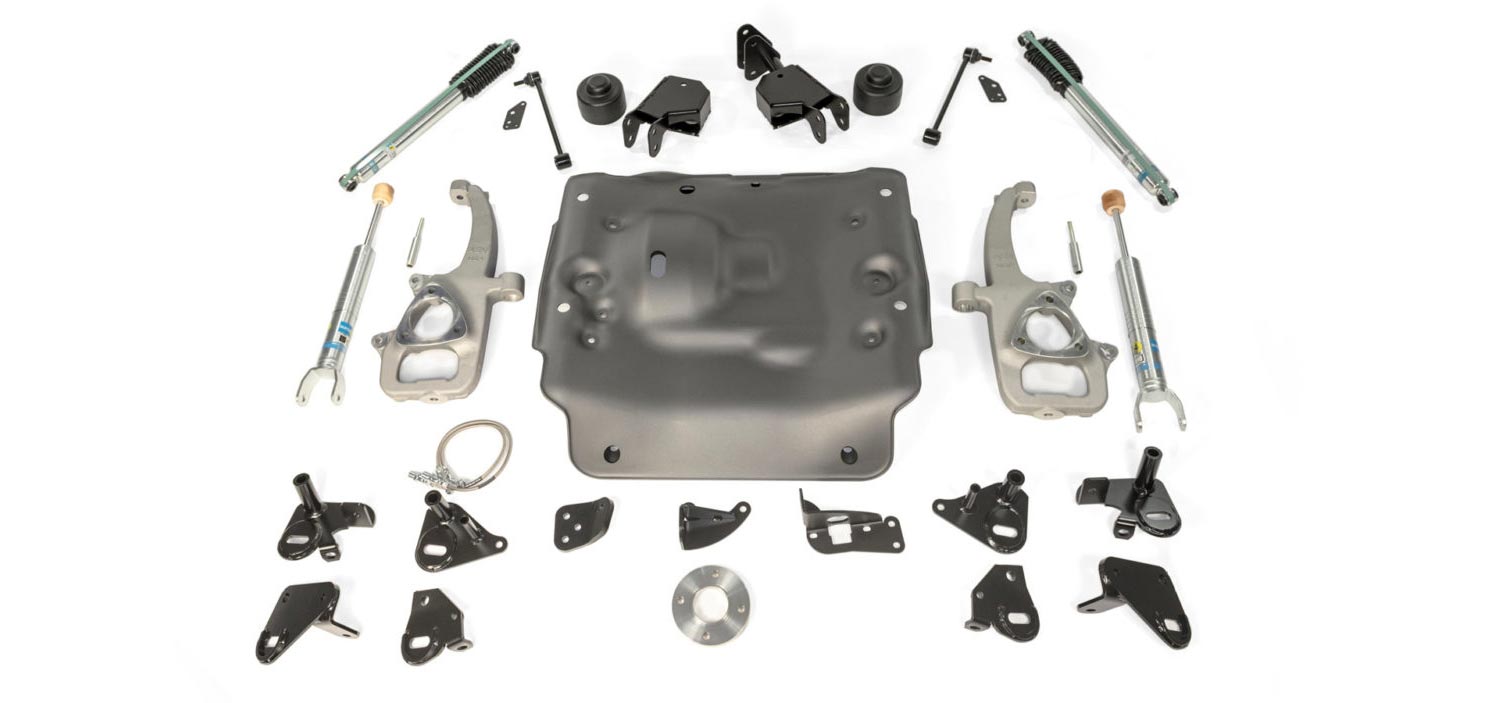

Kit Contents:

  • Military Grade A206 T4 Aluminum “Tall” Steering Knuckles
  • AEV Low Profile Tie Rod Ends
  • Front Lower Control Arm Drop Brackets
  • Front Differential Relocation Brackets
  • 4mm Stamped Steel Skid Plate
  • Bilstein 5100 Height Adjustable Front Struts
  • Front Upper Strut Mounts
  • Stainless Steel Front Brake Lines
  • Front Sway Bar Endlink Extensions
  • CNC Aluminum Front Driveshaft Spacer
  • Rear Geometry Correction Brackets
  • Rear Upper Control Arm Brackets
  • Rear Coil Spring Relocation Mounts
  • Bilstein 5100 Rear Shock Absorbers
  • Rear Track Bar Bracket
  • Rear Brake Line Relocation Brackets
  • Rear Sway Bar Endlinks

Product Video

Tech Specs:

Application:
2013-18 Ram 1500 4WD (No Air Ride)
Recommended Tire Size:
35x12.50 (or equivalent)
Recommended Wheel:
18x8.5 w/ 5.32" backspacing or 20x9" w/ 5.25" back spacing
California Prop 65 Warning

Installation:

Difficulty Level:
Advanced
Estimated Install Time:
10-12 hours

Installation Guides:

(AEV30300AE) Suspension_RAM1500

Product FAQs

Is it ok to lift a truck with electric steering?

Yes, if it is done right. AEV’s suspension system maintains OE steering geometry to ensure that there is no additional stress on the electric steering box.



If I want to lease a truck, is this suspension something that can be taken off prior to the truck being turned in?

Yes! AEV designed this suspension system to minimize the amount of permanent modifications being done to the truck. Only one hole is lost during the installation process.

Why are the Bilstein struts used in this suspension system height adjustable?

AEV opted for Bilstein’s 5100 series height adjustable struts to give customers the ability to dial in their ride height based on how much additional weight has been added to the truck (such as a front bumper or winch).

What is the purpose of the front skid plate?

AEV designed the front skid plate to not only provide protection, but to also serve as an integral part of the suspension system. On 2013-18 Ram 1500 trucks, the front differential is mounted to the engine mounts. While this is perfectly acceptable in stock form, this is not ideal for a lifted application. AEV relocates the front differential from the engine mounts to the chassis by way of the skid plate, allowing for much more favorable CV angles. Additionally, AEV’s skid plate is stamped out of 4mm thick steel. The stamping process not only strengthens the steel but also allows for a more precise fit without hard angles, maximizing front axle ground clearance.



Why does AEV retain the factory coil springs?

AEV retains the factory coil springs to ensure that every truck will achieve the intended ride height, regardless of cab configuration, wheelbase or trim level. Additionally, the OE coil springs will provide the best possible ride quality and payload capacity for your specific truck.



Many other aftermarket suspension systems use steel or iron steering knuckles. Why does AEV use an aluminum steering knuckle?

The factory steering knuckles are aluminum for a reason – to limit unsprung weight. AEV utilizes A206 T4 aluminum steering knuckles which are a much higher grade than the OE steering knuckles but do not add all the extra weight of steel or iron steering knuckles. This weight reduction translates into better ride quality and handling.

Will my speedometer be off after I install larger tires?

Yes, but AEV's optional ProCal Module will properly calibrate your speedometer after installing larger tires.

How long does it take to install this suspension system?

An experienced shop or mechanic should be able to install this suspension in 10-12 hours.



Does this suspension system require any exhaust or driveline modifications?

No, the AEV DualSport Suspension does not require any exhaust or driveline modifications.



Can I reuse my factory 20” wheels?

No, this suspension system requires aftermarket wheels. Please refer to the recommended wheel specs listed on this page.

What is the biggest tire I can install with this suspension system?

We recommend a 35x12.50 (or metric equivalent) tire w/ aftermarket wheels.

Why does the AEV 4” DualSport Suspension System only lift my truck 2.75” in the rear?
The rear is lifted 2.75” to remove some of the Ram 1500’s factory rake, which makes the rear sit considerably higher than the front.
