HighMark Fender Flares For 2010-2018 Ram HD

2010-18 Ram HD HighMark Fender Flares


Open a picture of the product $959.00 Qty:
Open a picture of the product $729.00 Qty:
Open a picture of the product $729.00 Qty:

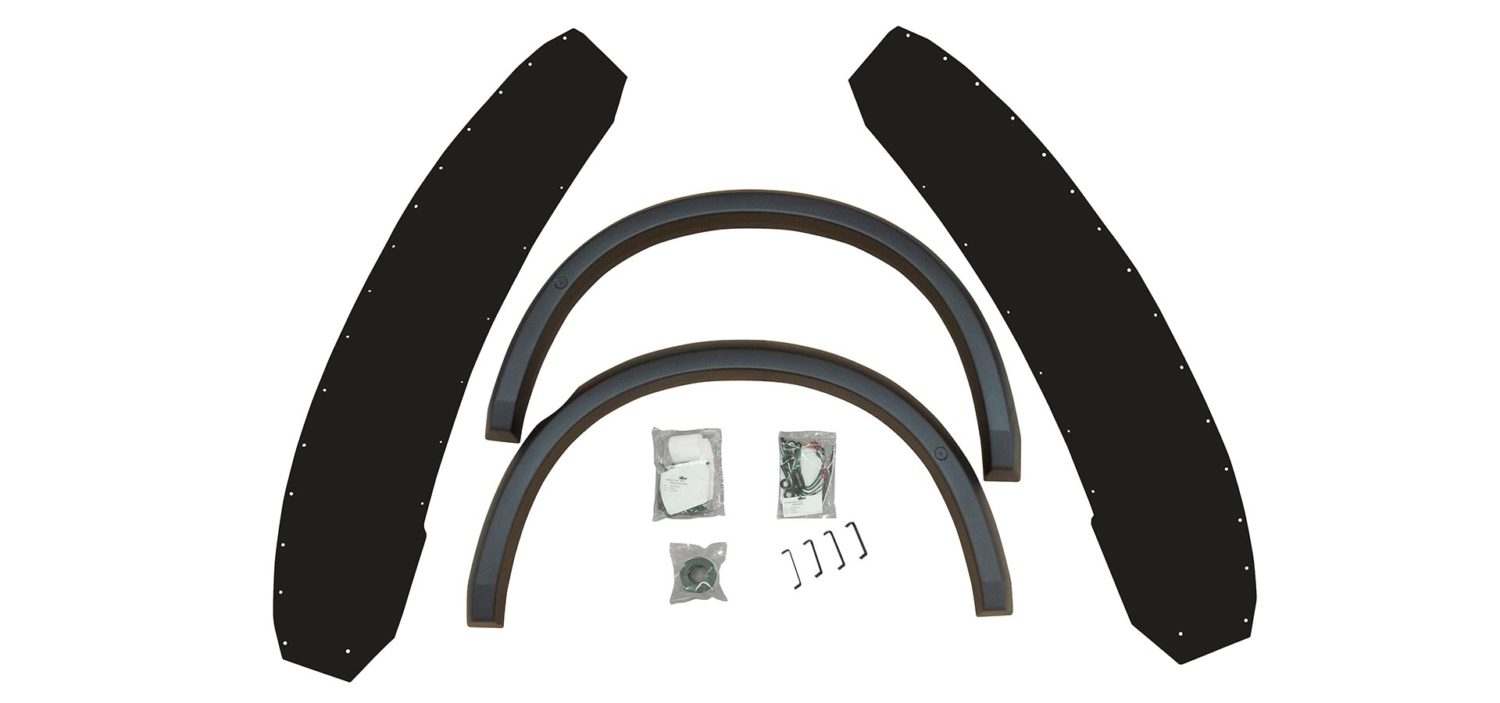

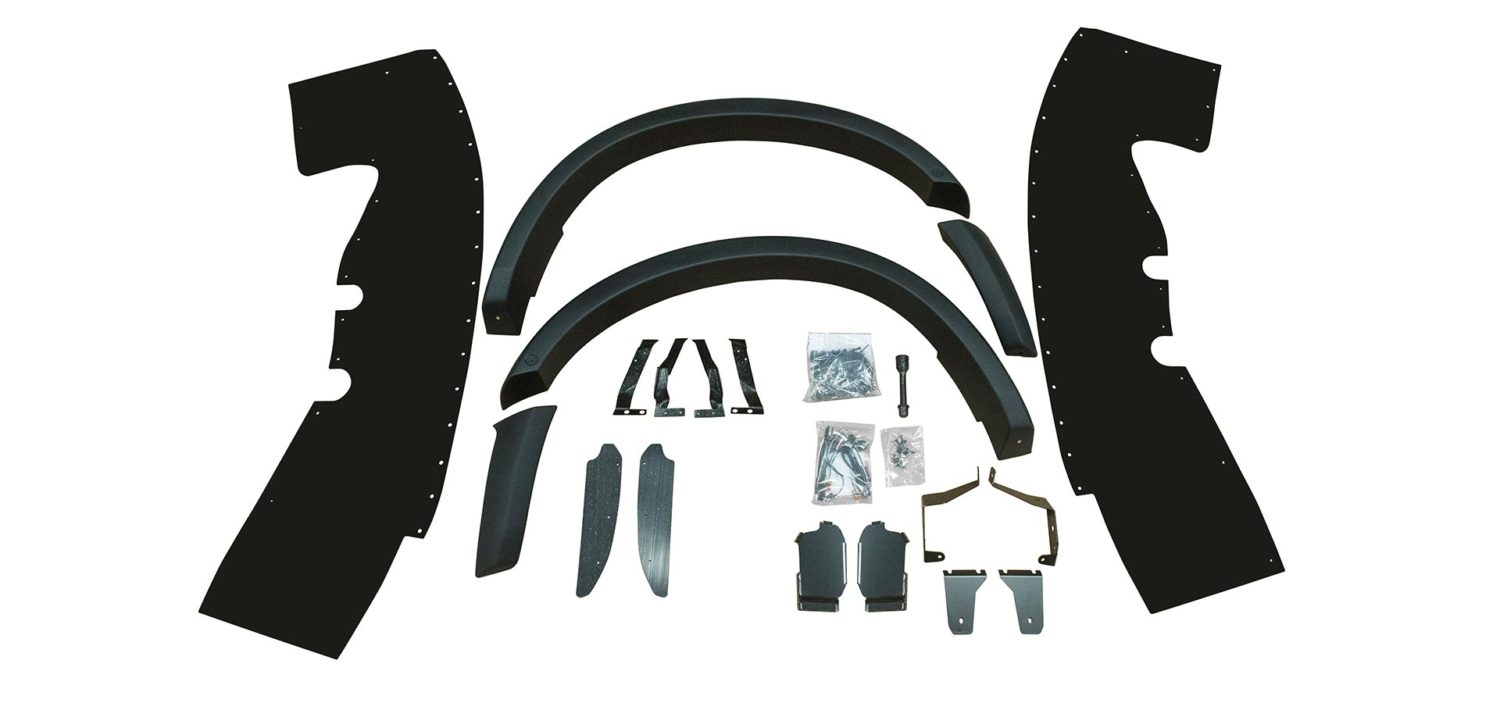

AEV’s HighMark Fender Flare kit for 2010-18 HD Ram trucks (including 4500/5500) is not just another set of aftermarket cutout fender flares. This unique kit not only includes the fender flares but all the other details necessary to finish the job professionally, including new wheel liners, structural steel reinforcements and marker lights. The 2010-18 Ram HD fender flares allow the fitment of up to 41″ tires with only 3″ of suspension lift*. The Ram HD trucks benefit immensely from a larger tire footprint and this kit is just the ticket, providing all the benefits of a large tire off-road while maintaining a low center of gravity for safety and optimized handling on the road. The AEV Highmark Fender Flare Kit is designed to work together perfectly with AEV’s 17×10 Katla Wheel, Premium Front Bumper and 3” DualSport SC Suspension System.

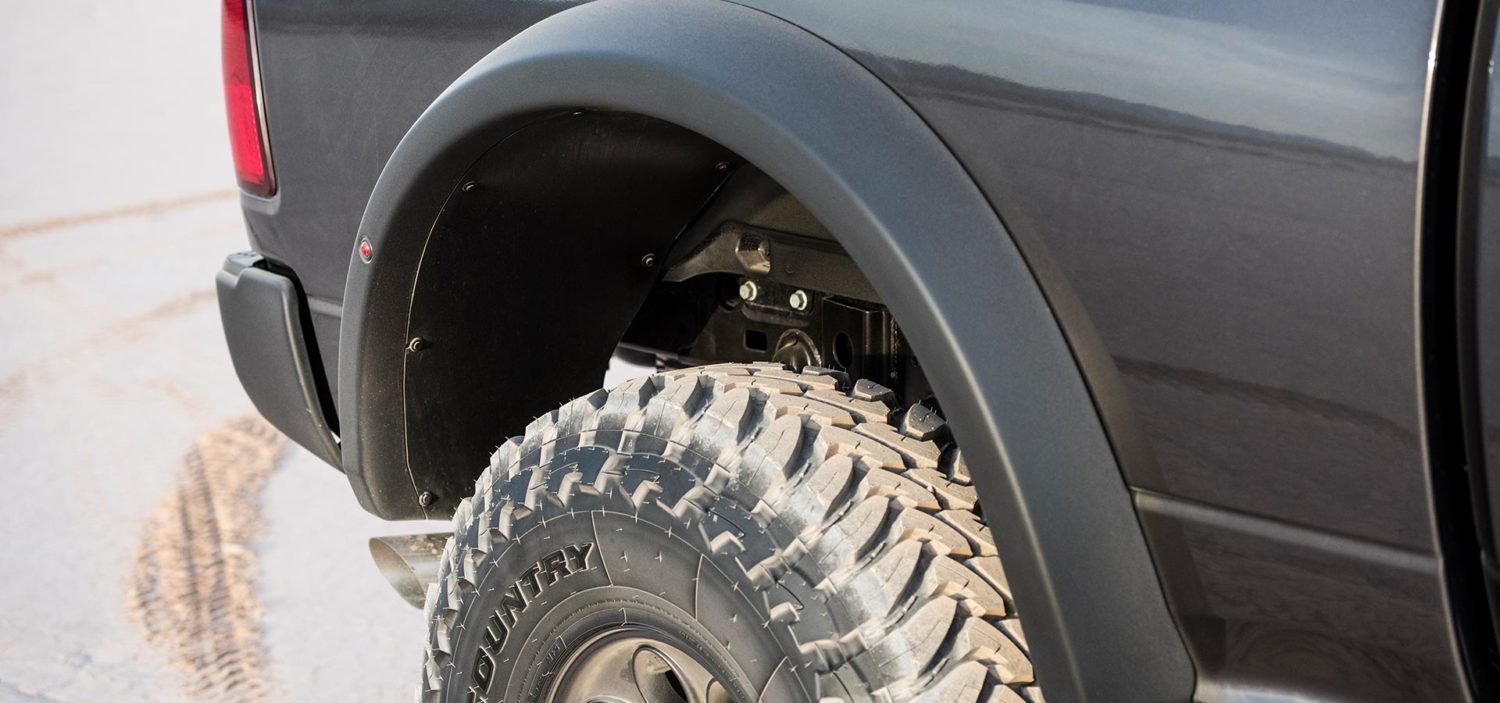

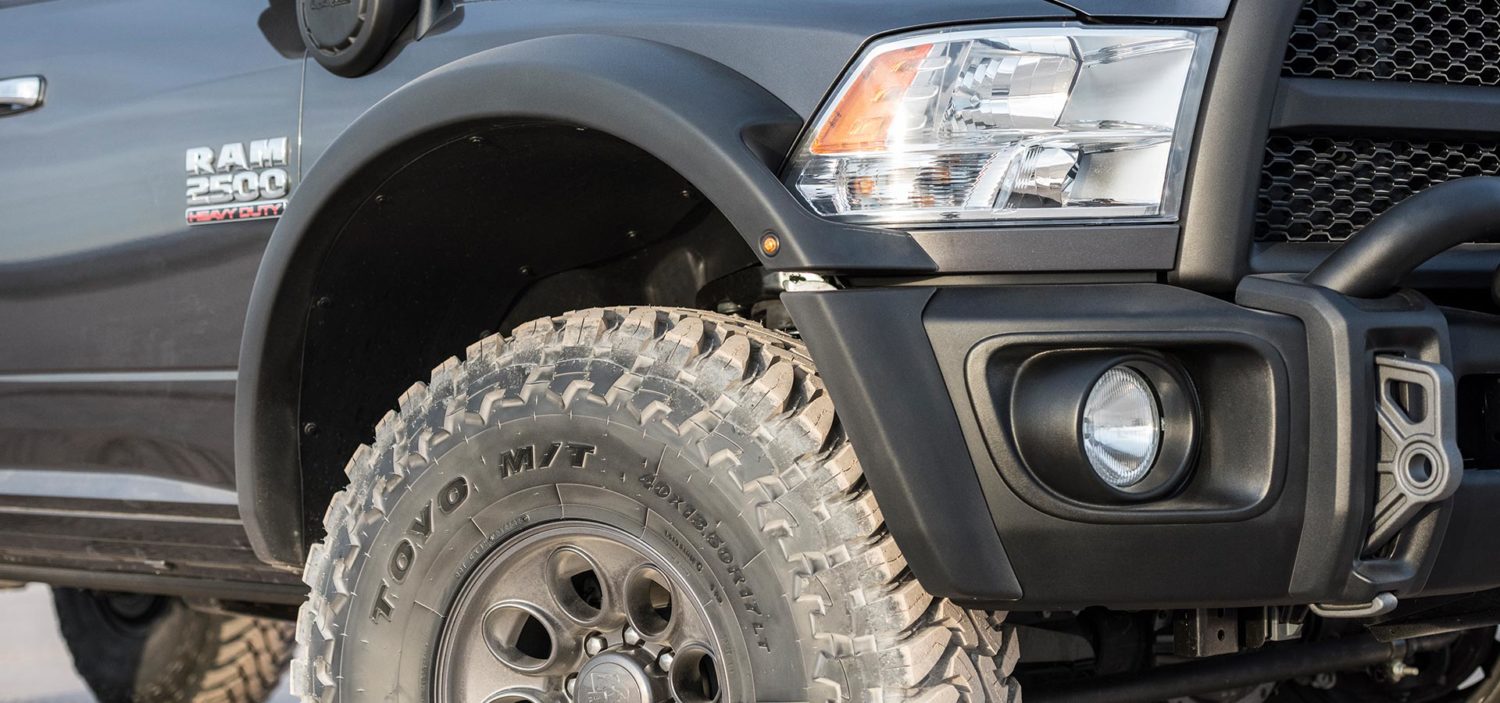

The Highmark Flare construction is extremely unique, in fact, the only vehicle that uses a similar construction is the Mercedes Unimog, and even at that, the AEV kit uses a much stronger version. While most aftermarket flares are simply a thin single sheet of vacuum-formed plastic, AEV chose to use rotomolded polyethylene (similar to a whitewater kayak) for the ultimate in strength. This kit simply can’t be compared to anything else currently found in the aftermarket. These flares are a fully enclosed, ¼” thick highly durable part that provides approximately 4.5” of additional coverage per side.

Designed and manufactured using OE-level processes, the Highmark Fender Flare Kit gives your truck aggressive styling and an imposing stance with a factory fit and finish that is second to none. Tested and verified to function correctly between -40F and 140F, these flares won’t let you down. Additionally, the AEV Highmark Fender Flare Kit complies with US DOT passenger vehicle width regulations and includes auxiliary front and rear LED marker lights. Optional AEV Rear Splash Guards are also available to comply with state and local regulations.

AEV 2010-18 Ram HD HighMark Fender Flares are proudly made in the USA and are available as a complete kit or a standalone front set intended for customers who are using a utility body, cab chassis, custom bed or camper configurations.

*Please note: The AEV Highmark Fender Flare Kit was designed and engineered to be used in conjunction with AEV’s Premium Front Bumper, 3” DualSport Suspension System and 17×10 Katla Wheels. For that reason, AEV cannot guarantee tire clearance and compatibility when used with other manufacturers’ front bumpers, wheels and/or suspension systems and steering components. Professional installation is highly recommended. Some steering stop adjustments may be required depending on tire and wheel choice. Customers who currently own an AEV Front Bumper, AEV Suspension System or 17×8.5 AEV Wheels will need to upgrade these components before installing our HighMark Fender Flare System. These necessary 37″ to 40″ Conversion Parts can be purchased online or by contacting our sales department directly at (248) 926-0256.

The AEV HighMark Fender Flares are designed for trucks with a 6.5′ bed. Please call us if you have an 8′ bed.

Key Features:

  • Fits 2010 – 2018 HD Ram Trucks (incl. 4500/5500)
  • Allows the fitment of a massive 41” tire with only 3” of suspension lift!*
  • Provides 4.5” of additional tire coverage
  • Maintains a low center of gravity for optimized handling and safety
  • Nearly indestructible polyethylene measuring over ¼” thick
  • Custom AEV inner fender liners are included for a professional installation
  • Front only sets are available for utility body, cab chassis and custom bed/camper applications
  • Factory fit and finish
  • Complies with US DOT regulations
  • Proudly made in the USA

Tech Specs:

Manufacturing Process:
Roto-Mold (crush can covers)
Cross-link polyethylene
2010 - 2018 Ram HD Trucks
Manufactured In:
United States
California Prop 65 Warning


Difficulty Level:
Estimated Install Time:
8-10 Hours (Front) | 5-6 Hours (Rear)

Installation Guides:

AEV HighMark Fender Flares for Ram HD Front Installation Guide

AEV30119AF Rear Flares

Product FAQs

Are there any additional components needed to install the front flare on a 4500/5500?

No, but we do recommend the Phoenix Flexy Flare (2.25" wide) part # PX52-191, for additional coverage.
