COMEUP SOLO 12.5rs GMF Winch for Silverado HD / Sierra HD with AEV Front Bumper
$2,300.00
In stock

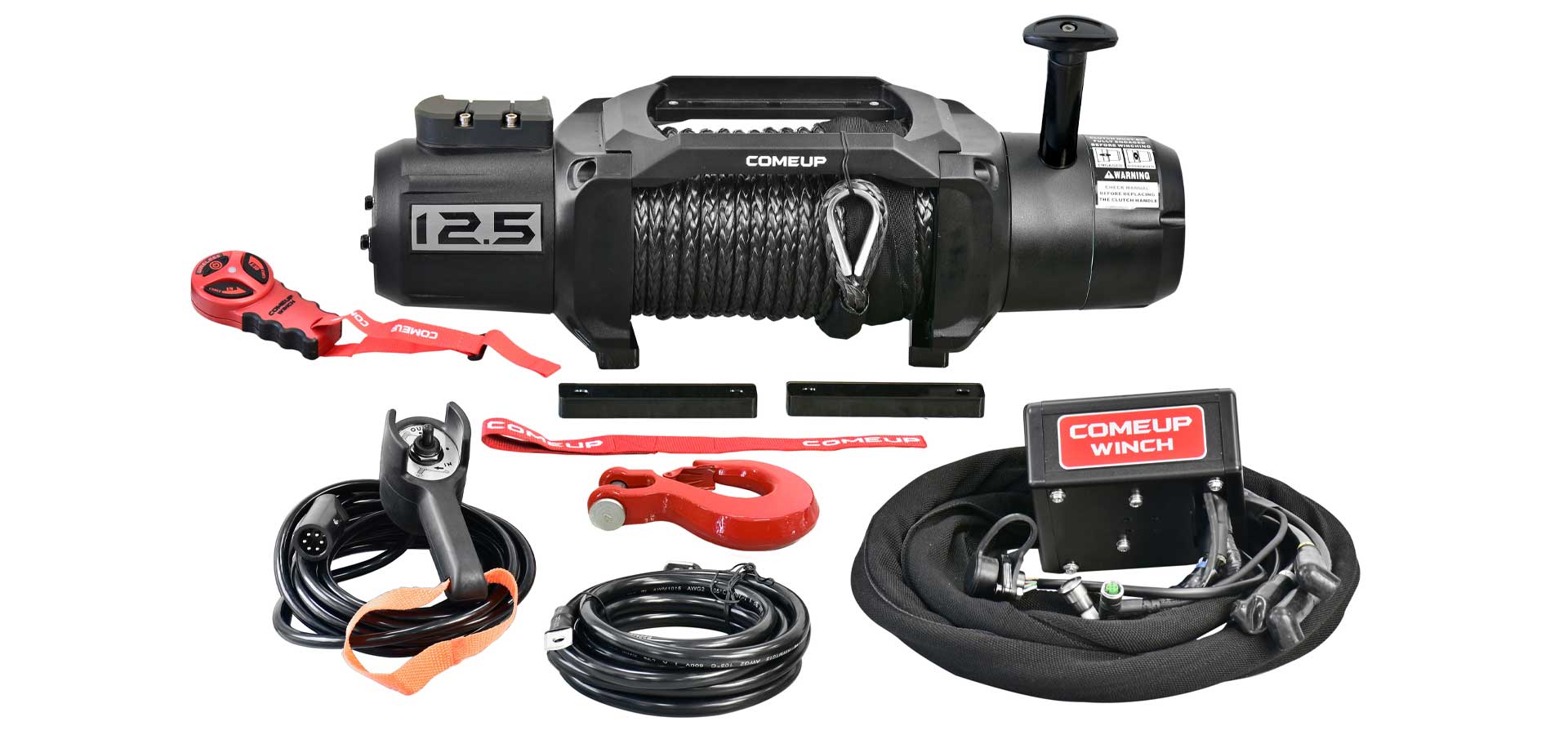

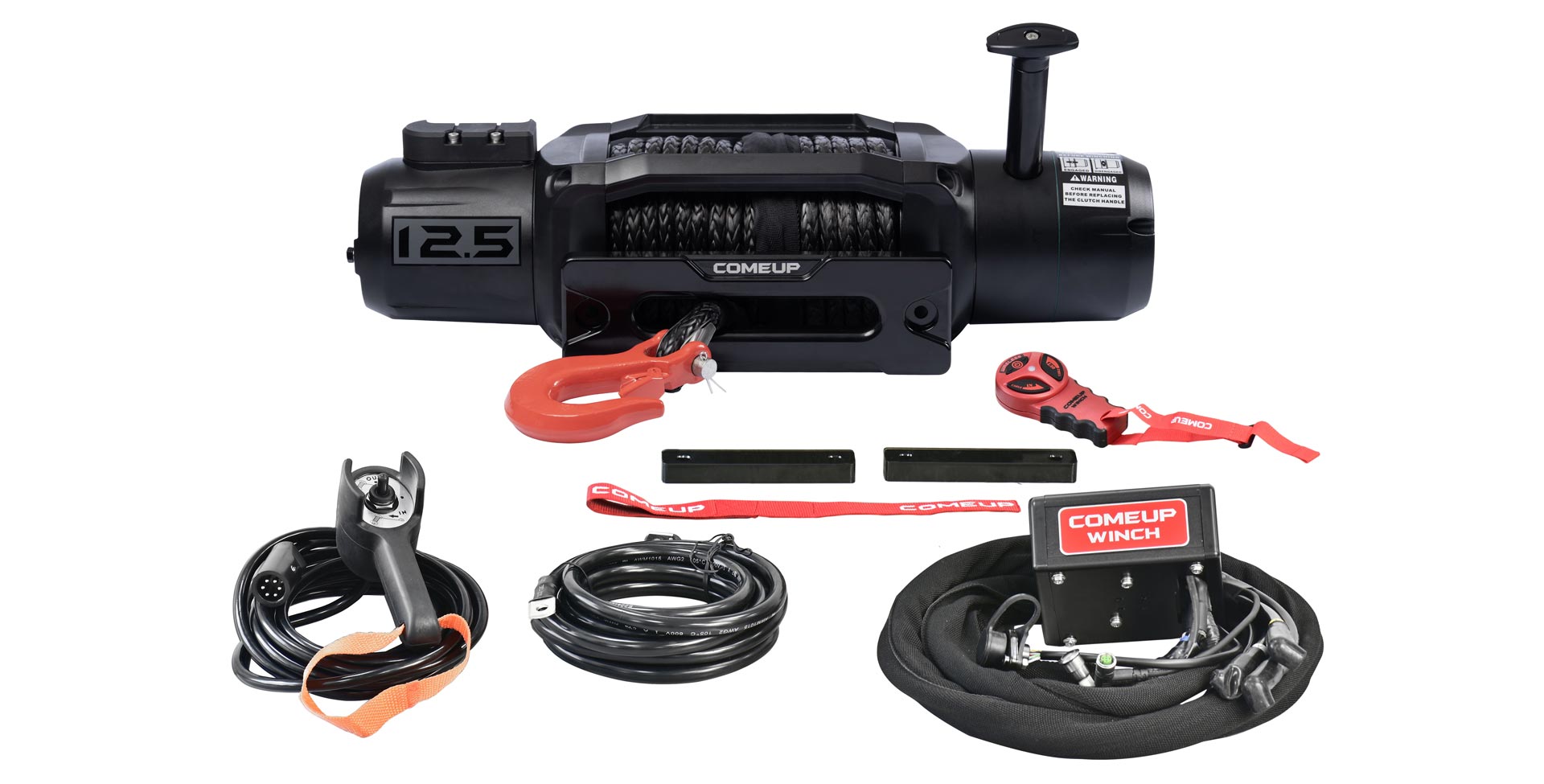

Designed specifically for Silverado HD and Sierra HD equipped with the AEV stamped-steel front bumper. The COMEUP SOLO 12.5rs GMF Winch features a compact design and a 12,500-lb. pulling rating. Kit includes winch, controller, wire harness, wireless remote control and wired waterproof remote control.
- 12V DC severe duty winch rated at 12,500 lbs. pulling helps meet your needs
- Heavy-duty series wound motor delivers excellent torque output and fast line speed; equipped with a thermal protection switch to help prevent winch motor from overheating
- Hardened steel, three-stage planetary gear train for efficient and reliable operation
- Includes a built-in digital two-way wireless remote control and a wired waterproof remote control
- 12-strand 100-foot synthetic rope, coated to improve abrasion with no water absorption
- Patented mechanical cone brake located outside the drum expedites heat dispersion; the greater the load on the rope, the greater amount of braking is generated by the mechanism
- Heavy-duty sealed contactor housing with silver-alloy contact pads, thick copper buss bars and submersible construction helps provide weather resistance
Please Note: To install the COMEUP SOLO 12.5rs GMF Winch, you’ll need the AEV Winch Installation Kit (16060020).
Line Speed and Amp. Draw (1st layer of wire rope on the drum)
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
|---|---|---|
| No load | 7.7 / 25.3 | 45 |
| 907 / 2,000 | 3.4 / 11.2 | 75 |
| 1,814 / 4,000 | 2.5 / 8.2 | 160 |
| 2,722 / 6,000 | 2.0 / 6.6 | 230 |
| 3,629 / 8,000 | 1.7 / 5.6 | 300 |
| 5,,670 / 12,500 | 0.9 / 3.0 | 470 |
Line Pull and Rope Capacity
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 5,670 / 12,500 | 4.8 / 15.7 |
| 2nd | 4,499 / 9,919 | 10.9 / 35.7 |
| 3rd | 3,729 / 8,221 | 18.5 / 60.7 |
| 4th | 3,184 / 7,020 | 21.0 / 69.0 |
Product FAQs
- Can the winch be used on any vehicle?
No, it is specially designed for Silverado HD and Sierra HD equipped with the AEV stamped-steel front bumper.
- Can the winch be installed without the AEV stamped-steel front bumper?
No. The winch is only compatible with vehicles originally equipped with the AEV stamped-steel front bumper and requires the AEV Winch Installation Kit (sold separately).
- How is the winch turned on and off?
The winch is turned on and off via a switch mounted under the hood.
- How is the winch controlled?
The winch can be controlled by either the wireless controller or the wired controller.
- What additional items do I need to purchase to make the winch operational?
The winch needs the AEV Winch Installation Kit (sold separately).
- Can I install this myself?
Due to the extensive installation process, installation by an authorized AEV Parts Dealer and/or Installer, or a Chevrolet/GMC Dealer, is strongly recommended.
