AEV Soft Shackles
$54.00 – $88.00

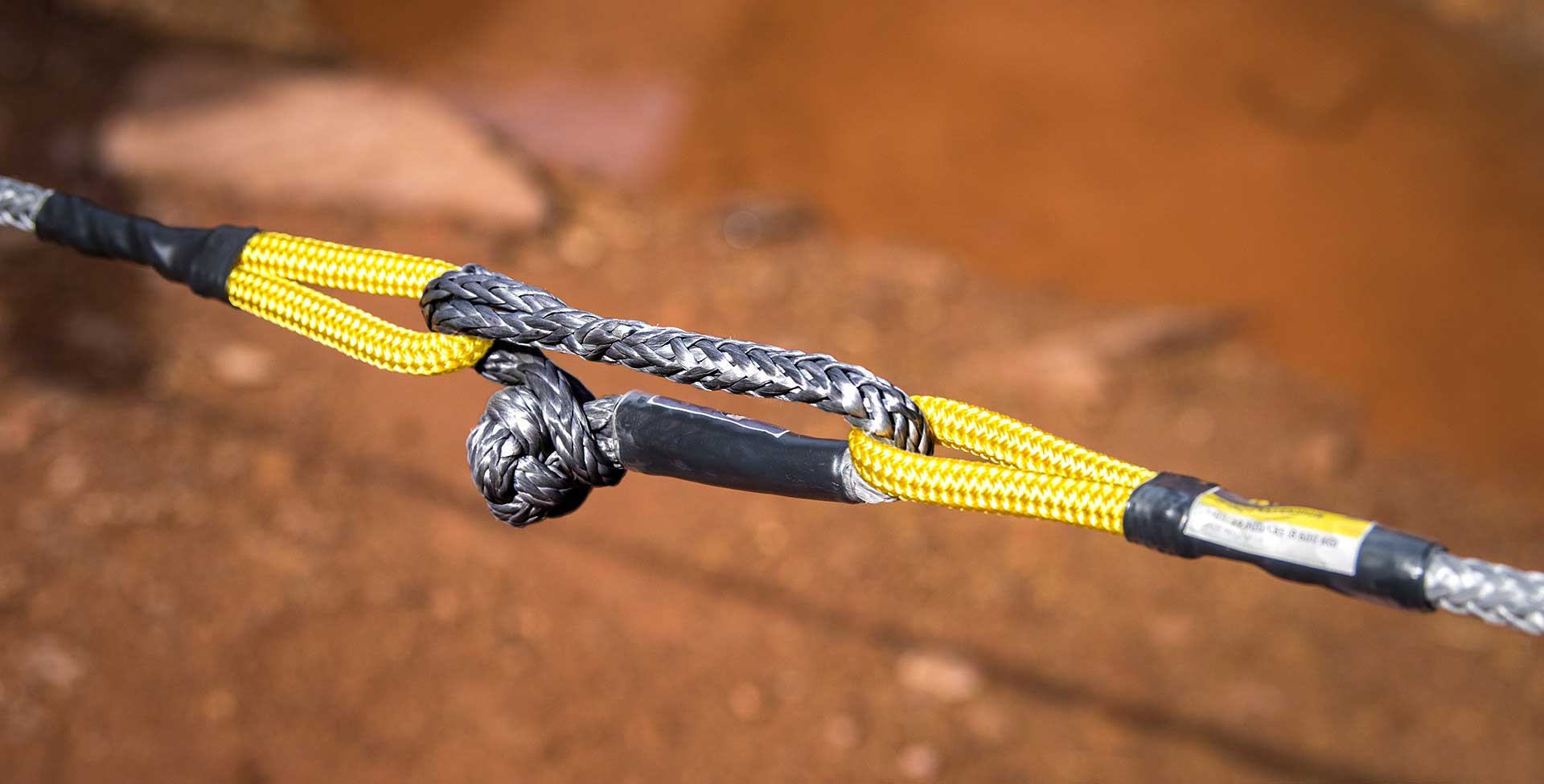

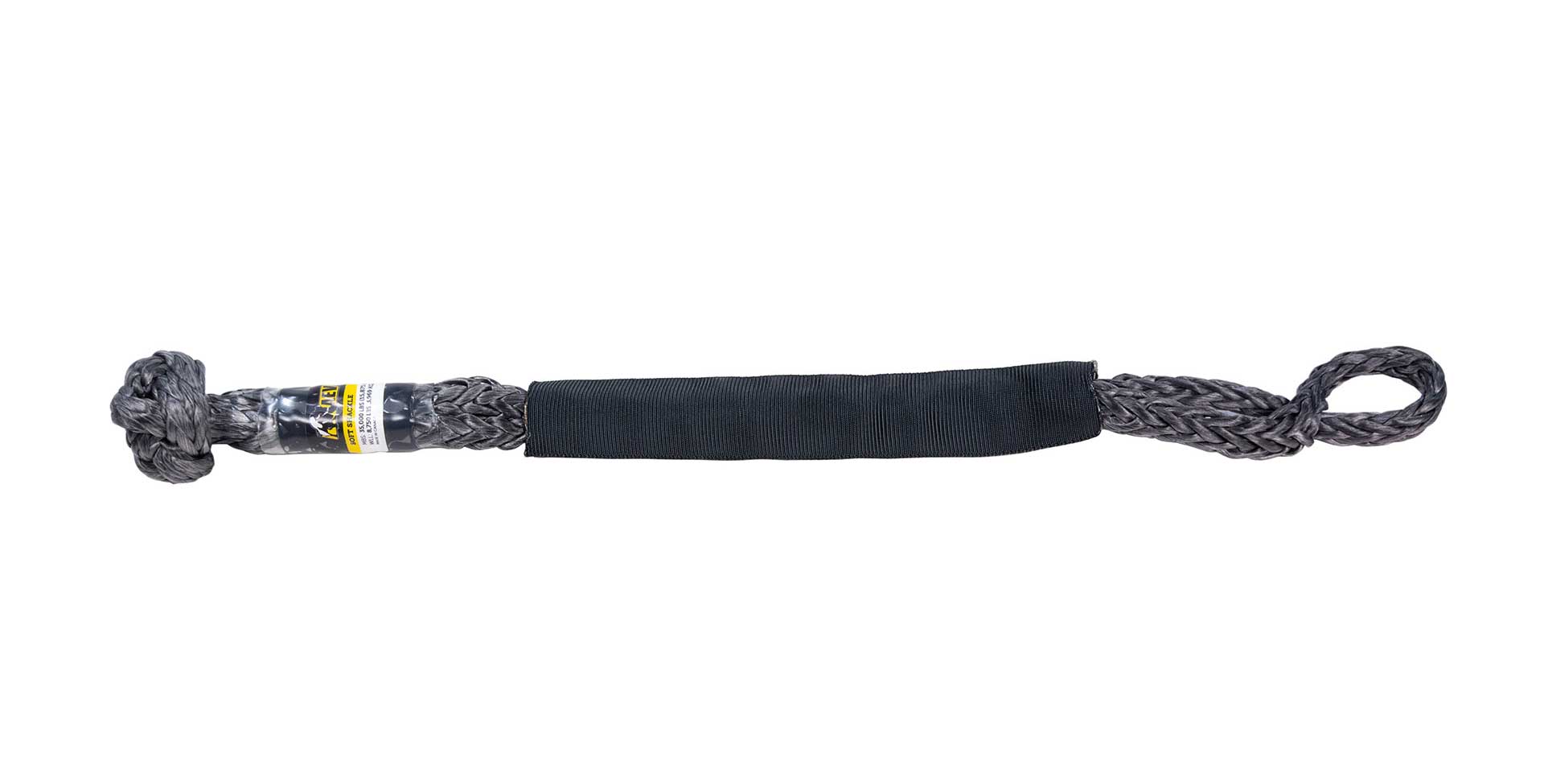

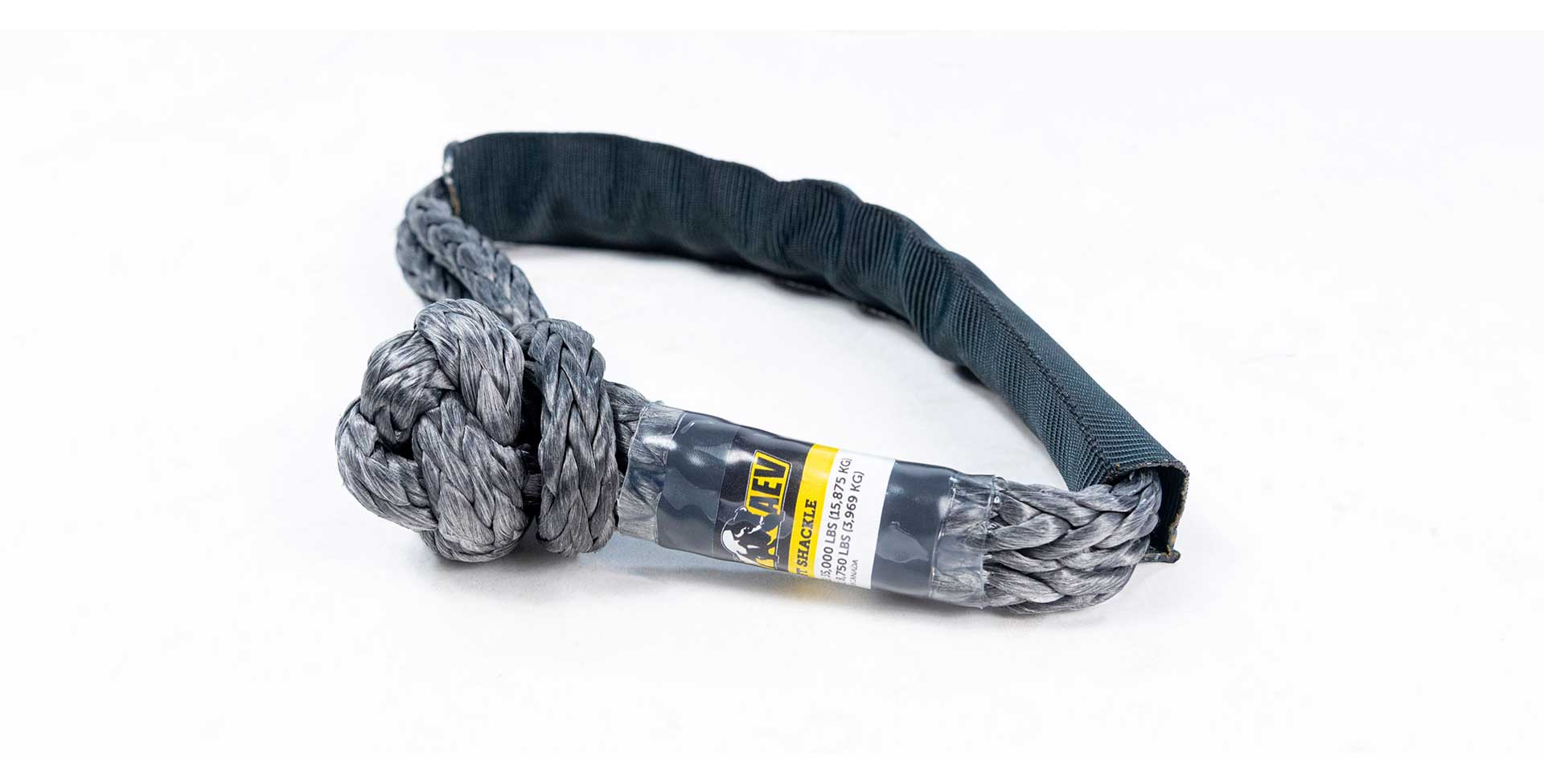

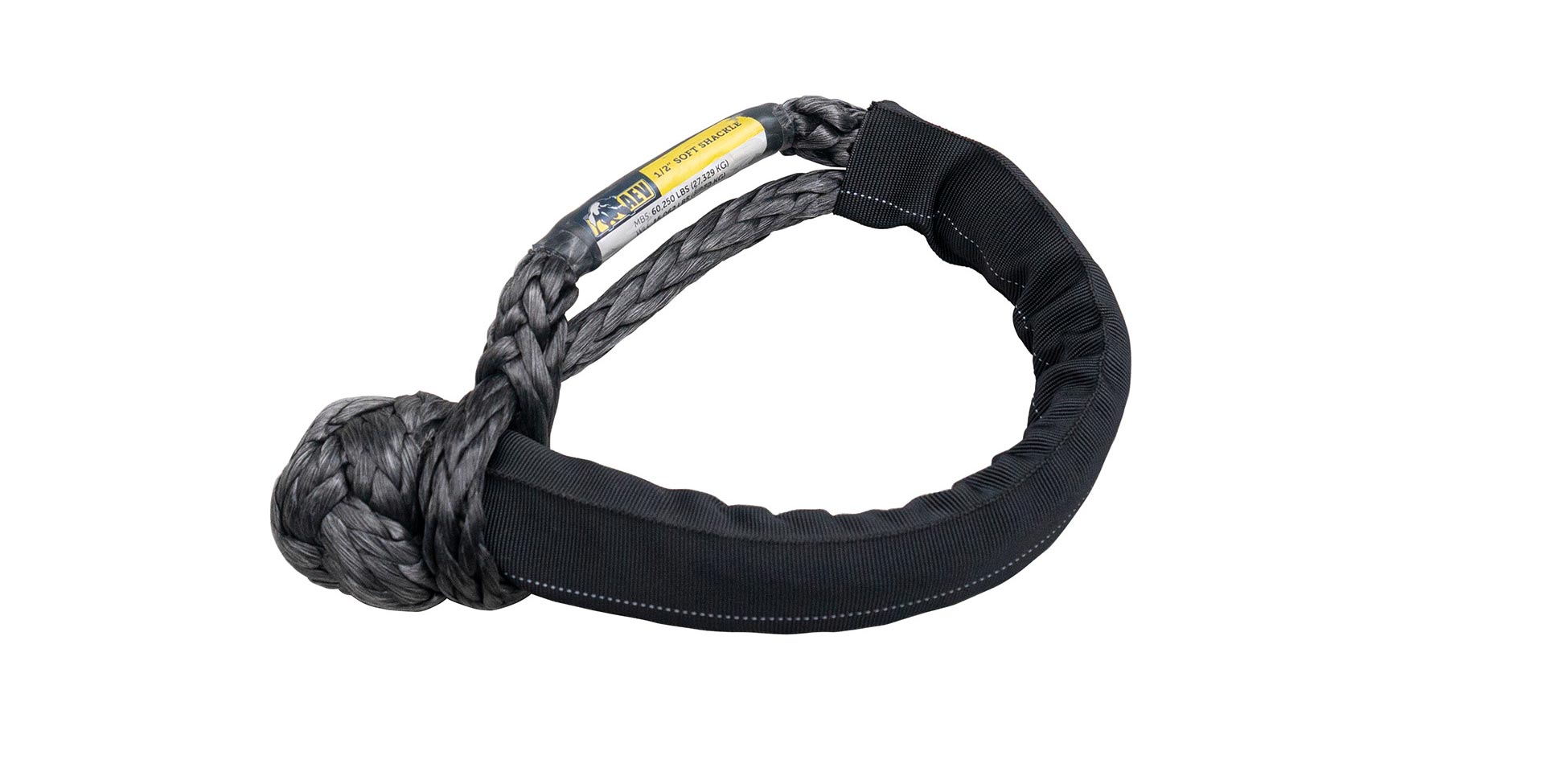

AEV synthetic fiber soft shackles are lightweight, strong and versatile, making them a safe and viable option when a traditional D-ring anchor shackle cannot be used. AEV Soft Shackles are manufactured from premium Dyneema® SK78 synthetic fiber and feature an additional layer of chafe protection to protect against damage from sharp edges and rough surfaces.
|Part Number||Dimensions||Minimum Breaking Strength (MBS)||Working Load Limit (WLL)|
|80808005AA||3/8″ x 12″||35,000 LBS (15,875 KG)||8,750 LBS (3,969 KG)|
|80808031AA||1/2″ x 18″||60,250 LBS (27,328 KG)||15,062 LBS (6,832 KG)|
Please Note: Minimum Breaking Strength (MBS) is the minimum force necessary to cause a recovery device to break or fail. Working Load Limit (WLL) is the recommended maximum force a recovery device is intended to safely support, when the force is applied in-line and through the centerline of the device. The WLL is calculated by dividing the Minimum Breaking Strength (MBS) by a safety factor that is generally around 4-to-1. For example, the AEV Snatch Block has an MBS of 52,000 LBS, so when divided by a safety factory of 4-to-1, the WLL becomes 13,000 LBS.
- 1/2" x 18", 3/8” x 12”
- Minimum Breaking Strength (MBS):
- 35,000 LBS (15,875 KG), 60,250 LBS (27,328 KG)
- Working Load Limit (WLL):
- 15,062 LBS (6,832 KG), 8,750 LBS (3,969 KG)
- Dyneema® SK78 w/ dual layer chafe protection
- Manufactured In:
